Little Giant

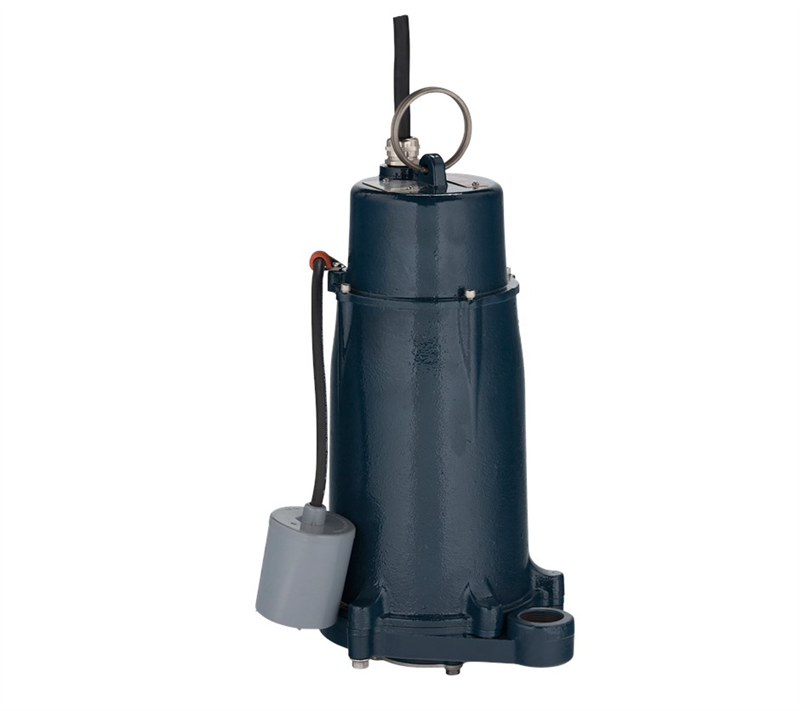

515862 Little Giant IGP Automatic Series Grinder Pump (Model # IGP-A231-20, 2 HP, 1 Phase, 208-230 Volts, 20' Cord, Vertical 1-1/4" FNPT Discharge, Float not Included)
515862 Little Giant IGP Automatic Series Grinder Pump (Model # IGP-A231-20, 2 HP, 1 Phase, 208-230 Volts, 20' Cord, Vertical 1-1/4" FNPT Discharge, Float not Included)
[COUNT] shoppers are looking at this right now
No reviews
SKU:515862
Precio habitual
$2,643.76 USD
Precio habitual
$3,035.00 USD
Precio de oferta
$2,643.76 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Little Giant 515862, Grinder Pumps Type, 2 HP, 208-230 Volts, 20' Cord,
| Applications |
| FPS IGP Series grinder pumps are ideal for residential and light commercial sewage waste transfer where high head conditions exist |
| Features |
| Powerful 2 hp, 3450 rpm motor to handle the demands of grinding domestic sewage |
| Powerful 2 hp, 3450 rpm motor to handle the demands of grinding domestic sewage |
| Start/Run components encased in oil-free chamber requiring no control panel |
| Carbon/Ceramic mechanical seals |
| Deflection-resistant, short motor shaft |
| Corrosion-resistant brass impeller minimizes downtime and maintenance |
| Seven-vane, angled face, non-clogging, balanced impeller |
| Tight cutting clearances for superior grinding at 414,000 cuts per minute |
| Epoxy-coated finish for corrosion resistance and durability |
| Built-in overload protection prevents over-current/temperature damage |
| GLK-SST Grinder Leg Kit included on 515861 |
|
Specifications |
|
|
Brand
|
Little Giant
|
|
Catalog Number
|
515862
|
|
Type
|
Grinder Pumps
|
|
Series
|
IGP-A
|
|
Model
|
IGP-A231-20
|
|
HP
|
2
|
|
Float
|
Not Included
|
|
Volts
|
208-230
|
|
Hz
|
60
|
|
Full Load Amps / Watts
|
13.9/3200
|
|
Cord
|
20'
|
|
GPM @ 20'
|
32
|
|
GPM @ 40'
|
31
|
|
GPM @ 60'
|
30
|
|
GPM @ 80'
|
25
|
|
GPM @ 100'
|
20
|
|
GPM @ 120'
|
10
|
|
Shut-Off
|
130
|
|
PSI
|
56
|
|
Weight (lbs)
|
104
|
|
RPM
|
3450
|
|
Motor Design
|
Single-phase, capacitor start, capacitor run
|
|
Insulation Class
|
F
|
|
Motor Cover O-ring
|
Nitrile
|
|
Overload Protection
|
Internal, on winding thermal protector
|
|
Motor Shaft
|
AISI 300 series stainless steel
|
|
Ball Bearing-Upper
|
Single row ball, 6203
|
|
Ball Bearing-Lower
|
Single row ball, 6306
|
|
Seal Housing
|
Cast iron with epoxy-coating
|
|
Mechanical Seal
|
Carbon/ceramic
|
|
Volute
|
Cast iron with epoxy-coating
|
|
Impeller
|
Brass
|
|
External Hardware
|
300 series stainless steel
|
|
