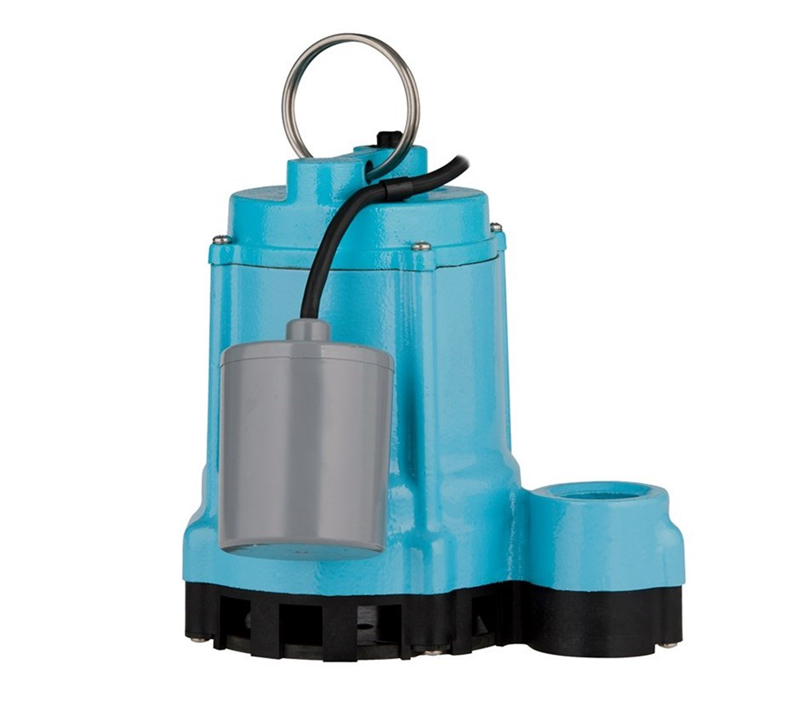

509807 Little Giant 9EC Series Effluent Pump (9EC-CIM Model, 4/10 HP, 230 Volts, Single Phase, Manual Switch, 1.5" Discharge, 20' Cord)
509807 Little Giant 9EC Series Effluent Pump (9EC-CIM Model, 4/10 HP, 230 Volts, Single Phase, Manual Switch, 1.5" Discharge, 20' Cord)
[COUNT] shoppers are looking at this right now
No reviews
SKU:509807
Precio habitual
$567.43 USD
Precio habitual
$993.00 USD
Precio de oferta
$567.43 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Little Giant 509807, 9EC , 4/10 HP, 230 volts, Manual Switch Type / Operation,
| Applications | |
| Effluent Wastewater Removal, Dewatering, Water Transfer | |
| Features | |
| Permanent Split Capacitor (PSC) | |
| Designed for continuous duty | |
| Energy-saving low amp draw | |
| Multiple switch options for automatic operation | |
| cCSAus listed | |
Specifications | |
Brand |
Little Giant |
Catalog Number |
509807 |
Type |
Effluent Wastewater Removal |
Series |
9EC |
Model |
9EC-CIM |
HP |
4/10 |
Volts |
230 |
Switch Type / Operation |
Manual |
On Level |
NA |
Off Level |
NA |
Cord |
20' |
Weight (lbs) |
27.5 |
Hz |
60 |
Max. Water Temp. |
140 F |
GPM @ 5 ft |
70 |
GPM @ 10 ft |
65 |
GPM @ 20 ft |
50 |
GPM @ 30 ft |
26 |
Shut-Off |
40 ft |
PSI |
17.3 |
Discharge |
1-1/2" FNPT |
Solid Handling |
up to 3/4" Dia. |
Motor Housing |
Epoxy-coated cast iron |
Impeller Material |
Thermoplastic elastomer |
Volute |
Epoxy-coated cast iron |
Motor Shaft |
Steel |
Mechanical Shaft Seal |
Nitrile with carbon and ceramic faces |
Fasteners |
Stainless steel |
Dimensions |
11"x8.9"x8.4" |
Warranty |
3-Year |
