Little Giant

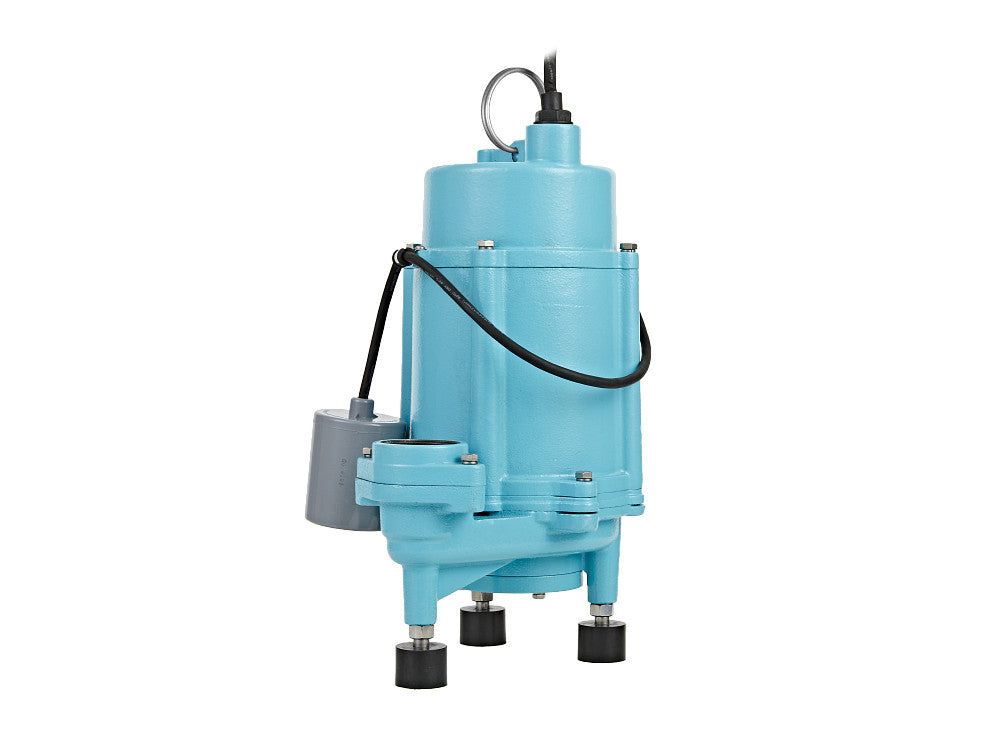

509801 Little Giant 9EC Series Effluent Pump (9EC-CIA-RF Model, 4/10 HP, 115 Volts, Single Phase, Piggyback Float Switch, 1.5" Discharge, 20' Cord)
509801 Little Giant 9EC Series Effluent Pump (9EC-CIA-RF Model, 4/10 HP, 115 Volts, Single Phase, Piggyback Float Switch, 1.5" Discharge, 20' Cord)
[COUNT] shoppers are looking at this right now
SKU:509801
Precio habitual
$438.81 USD
Precio habitual
$937.00 USD
Precio de oferta
$438.81 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
VIEW PRICE IN CART
No se pudo cargar la disponibilidad de retiro
Little Giant 509801, 9EC , 4/10 HP, 115 volts, Piggyback Float Switch Switch Type / Operation,
The 16G Series 1 hp Grinder Pump is designed for the toughest residential and light commercial wastewater applications as a new or drop-in replacement for any effluent or sewage pump struggling with clogs and binding wastewater applications.
| Applications |
| Effluent Wastewater Removal, Dewatering, Water Transfer |
| Features |
| Permanent Split Capacitor (PSC) |
| Designed for continuous duty |
| Energy-saving low amp draw |
| Multiple switch options for automatic operation |
| cCSAus listed |
|
Specifications |
|
|
Brand
|
Little Giant
|
|
Catalog Number
|
509801
|
|
Type
|
Effluent Wastewater Removal
|
|
Series
|
9EC
|
|
Model
|
9EC-CIA-RF
|
|
HP
|
4/10
|
|
Volts
|
115
|
|
Switch Type / Operation
|
Piggyback Float Switch
|
|
On Level
|
12" - 15"
|
|
Off Level
|
6" - 9"
|
|
Cord
|
20'
|
|
Weight (lbs)
|
27.5
|
|
Hz
|
60
|
|
Amps
|
7.5
|
|
Watts
|
800
|
|
Max. Water Temp.
|
140 F
|
|
GPM @ 5 ft
|
70
|
|
GPM @ 10 ft
|
65
|
|
GPM @ 20 ft
|
50
|
|
GPM @ 30 ft
|
26
|
|
Shut-Off
|
40 ft
|
|
PSI
|
17.3
|
|
Discharge
|
1-1/2" FNPT
|
|
Solid Handling
|
up to 3/4" Dia.
|
|
Motor Housing
|
Epoxy-coated cast iron
|
|
Impeller Material
|
Thermoplastic elastomer
|
|
Volute
|
Epoxy-coated cast iron
|
|
Motor Shaft
|
Steel
|
|
Mechanical Shaft Seal
|
Nitrile with carbon and ceramic faces
|
|
Fasteners
|
Stainless steel
|
|
Dimensions
|
11"x8.9"x8.4"
|
|
Warranty
|
3-Year
|
