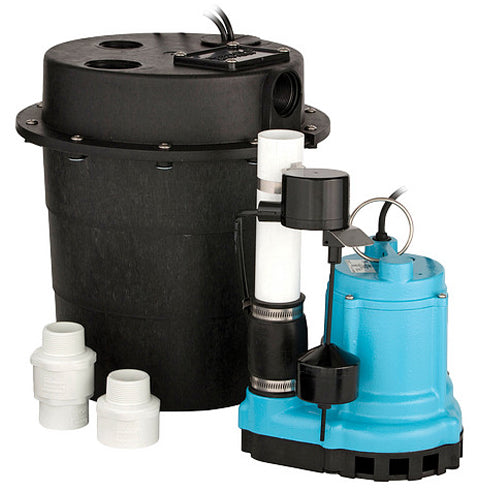

509268 Little Giant WRS Series Drainosaur Cast Iron Sump Pump Package System (WRS-9 Model, 4/10 HP, 1 Phase, 115 Volt, 60 Hz, Single Phase, 7.5 Full Load Amps, 70 Max GPM, 0.75" Max Solids, 10ft cord, 1.5" FNPT Discharge, Piggyback Vertical Switch)
509268 Little Giant WRS Series Drainosaur Cast Iron Sump Pump Package System (WRS-9 Model, 4/10 HP, 1 Phase, 115 Volt, 60 Hz, Single Phase, 7.5 Full Load Amps, 70 Max GPM, 0.75" Max Solids, 10ft cord, 1.5" FNPT Discharge, Piggyback Vertical Switch)
[COUNT] shoppers are looking at this right now
No reviews
SKU:509268
Precio habitual
$613.06 USD
Precio habitual
$1,324.00 USD
Precio de oferta
$613.06 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
* If you are tax exempt, email your tax form to Sales@kgpowersystems.com
509268 Little Giant WRS Series Drainosaur Cast Iron Sump Pump Package System (WRS-9 Model, 4/10 HP, 1 Phase, 115 Volt, 60 Hz, Single Phase, 7.5 Full Load Amps, 70 Max GPM, 0.75" Max Solids, 10ft cord, 1.5" FNPT Discharge, Piggyback Vertical Switch)
Featuring the Drainosaur and Drainosaur Jr, the WRS Series pumps offer compact drainage solutions for under sinks, laundry trays, basement bars and more.
Accessories Included: Pre-assembled 5 gallon basin and cover with removable filter, O-rings for watertight seal.
Ratings |
|
| HP 60Hz | 0.4 hp |
| Frequency | 60 Hz |
| Phase | Single-Phase |
| Amps - Full Load | 7.5 A |
| Amps - Starting | 14.5 A |
| Full Load Watts | 800 W |
| Volts | 115 VAC |
| Cord Length | 10 ft |
| Pump Power Cord Type | SJTW |
| Pump Power Cord Gauge | 18-3 |
| Motor Type | Submersible |
| Continuous Duty | Yes |
| Thermal Overload Protection | Yes |
Operation |
|
| Maximum Flow Rate - 60Hz | 70 gpm / 4200 gph |
| Shut-Off | 40 ft |
| Shut Off Height - 60Hz | 40 ft |
| Max Solid Handling Size | 0.75 " |
| Switch Type | Piggyback Vertical Mechanical |
| Motor Cooling | Oil |
Liquid |
|
| Max Fluid Temperature | 125 °F |
Materials of Construction |
|
| Pump Base Material | Cast Iron |
| Pump Body Material | Cast Iron |
| Pump Volute Material | Cast Iron |
| Impeller Type | Non-Clog |
| Impeller Material | Thermoplastic Elastomer |
| Motor Shaft End - Material | SAE 1040/45 Carbon Steel |
| Intake Screen Material | Cast Iron Epoxi |
| Fasteners Material | Stainless Steel |
| Top Bearing Material | Steel |
| Top Bearing Type | Ball |
| Bottom Bearing Material | Steel |
| Bottom Bearing Type | Ball Bearing |
| Seal Material | Carbon/Ceramic, Nitrile |
| Seal Type | Mechanical Seal |
Installation |
|
| Discharge Type | Threaded - FNPT |
| Discharge | 1.5 " |
| Product Length | 13.88 " |
| Product Width | 13.88 " |
| Product Height | 16.17 " |
| Pump Length | 8.9 " |
| Product Weight | 35 lb |
| Product Weight w/ Pack | 38.4 lb |
| Carton Length | 14.75 " |
| Carton Width | 14.75 " |
| Carton Height | 17.25 " |
| Off Level - Range | 2" - 5" |
| On Level - Range | 7" - 10" |
Other |
|
| Accessories Included | Pre-assembled 5 gallon basin and cover with removable filter, o-rings for watertight seal. |
| Electrical Agency Approvals | CSA |
