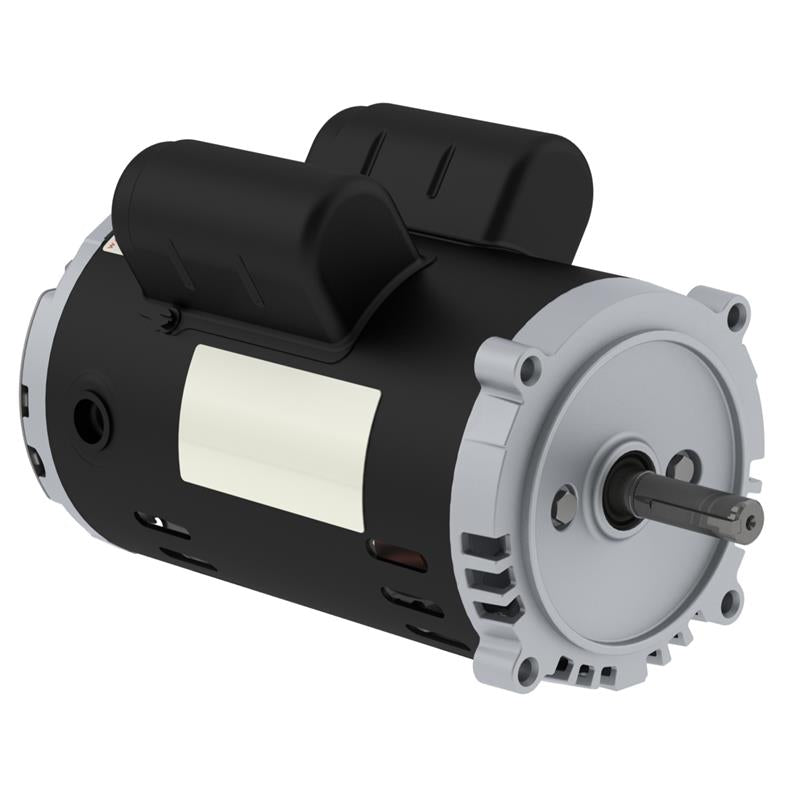

.5036OT1BW56CFL-S WEG Motor (.50 HP, 3600 RPM, 1 Phase, 60 Hz, W56C Frame, ODP, 115/208-230 V)

.5036OT1BW56CFL-S WEG Motor (.50 HP, 3600 RPM, 1 Phase, 60 Hz, W56C Frame, ODP, 115/208-230 V)

👁️ [COUNT] People are currently viewing this product.

.5036OT1BW56CFL-S

$275.90 USD
$310.00 USD $275.90 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

WEG .5036OT1BW56CFL-S, .50 HP, 3600 RPM, 1 Phase, 60 Hz, W56C Frame, Footless, ODP, 115/208-230 V

Applications
High Starting Torque makes these motors ideal for a wide range of applications.
Features
High Starting Torque
182T frames and up are cast iron for severe duty
NPT Threaded Holes in Terminal Box
Class F insulation
V-ring Seals
Class F insulation

Specifications

Brand
WEG
Catalog Number
.5036OT1BW56CFL-S
Type
General Purpose Motor
Series
C-Face Motor
HP
.50
RPM
3600
Phase
1
Hertz
60
Frame
W56C
Mounting
Footless
Enclosure
ODP
Voltage
115/208-230
Full Load Amps
2.4
Full Load Efficiency
72.4
Frame Material
Rolled Steel
Service Factor
1.25
"C" Dimensions
10.26
Warranty
1 Year
