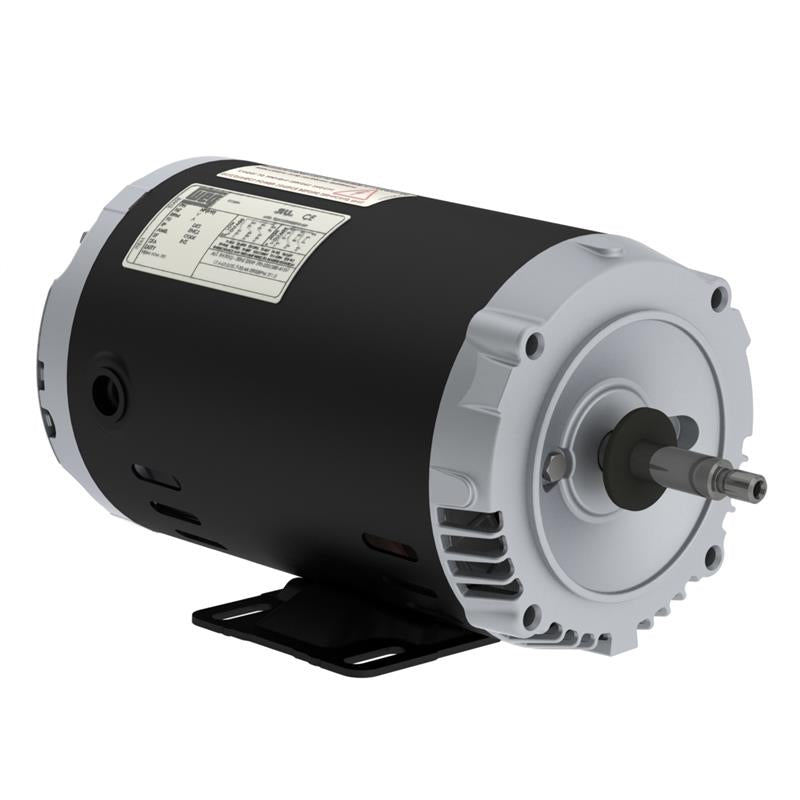

.5036OS3EJP56J-S WEG Jet Pump Motor (0.5 HP, A56 FRAME, 208-230/460 V, THREE PHASE, ODP , 3480 RPM)

.5036OS3EJP56J-S WEG Jet Pump Motor (0.5 HP, A56 FRAME, 208-230/460 V, THREE PHASE, ODP , 3480 RPM)

.5036OS3EJP56J-S

$171.99 USD
$171.99 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG Motor .5036OS3EJP56J-S, 0.5 HP , 3480 RPM, A56 FRAME, 208-230/460 V , THREE PHASE, 60 Hz , ODP , Jet Pump Motor
Applications
Features
Jet Pump Motors, 3-Phase, Rolled Steel, Standard Efficiency, ODP

Tech Specs

Brand
WEG Motors
Model Number
.5036OS3EJP56J
HP
0.5 HP
RPM
3480
FRAME
A56
VOLTAGE
208-230/460 V
PHASE
THREE
FREQUENCY
60 Hz
ENCLOSURE
ODP
APPROXIMATE WEIGHT (lb)
25
FEET
YES
TERMINAL BOX
LEFT
FLANGE
FC-149
RATED CURRENT
1.90-1.91/0.957 A
LOCKED ROTOR CURRENT IL IN
6
LOCKED ROTOR CURRENT
11.5/5.74 A
LOCKED ROTOR TORQUE
2.5
BREAKDOWN TORQUE
3
EFFICIENCY 50
55
EFFICIENCY 75
62.5
EFFICIENCY 100
66
POWER FACTOR 50
0.57
POWER FACTOR 75
0.68
POWER FACTOR 100
0.77
SERVICE FACTOR
1.60 (1.00 at 208V)
INERTIA KGM2
0.00082 kgm
INERTIA SQ FT
0.01946 sq.ft.
LOCKED ROTOR TIME
15 s
NOISE LEVEL
-
ALTITUDE
1000
DUTY CYCLE
S1
AMBIENT TEMPERATURE
-20C - +40C
DEGREE OF PROTECTION
IP21
NO-LOAD CURRENT
1.39/0.693 A
INSULATION CLASS
B
FULL LOAD TORQUE NM
1.01 Nm
FULL LOAD TORQUE FT
0.744 .ft
SLIP
0.0333
DESIGN
A
TEMPERATURE RISE
80 K
BEARINGS D E
6203 2RS
BEARINGS N D E
6202 2RS
REGREASING INTERVAL D E
-
REGREASING INTERVAL N D E
-
GREASE AMOUNT D E
-
GREASE AMOUNT N D E
-
