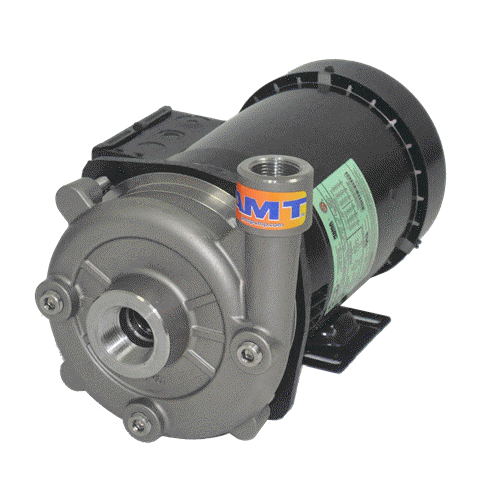

5032-98 AMT Straight Centrifugal Pump (2 HP, 115-208/230 Volts, 1 Phase)

5032-98 AMT Straight Centrifugal Pump (2 HP, 115-208/230 Volts, 1 Phase)

5032-98

$1,018.18 USD
$1,568.00 USD $1,018.18 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

AMT 5032-98, , 2 HP, 115-208/230 Volts, 1 Phase,

Applications
AMT Straight Centrifugal Pumps are designed for continuous-duty OEM, Industrial/Commercial and Processing applications including dirty water circulation, liquids containing particles and solids up to 1/8 diameter for chemical processing and liquid transfer. These straight centrifugal heavy duty industrial pumps are available in a variety of construction and seal materials to meet your specification. Pull from rear design for easy servicing without disturbing piping, in addition to a two piece impeller for easy clean out. Pumps are closed coupled to Totally Enclosed Fan Cooled (TEFC) motors.
Features
Pumps are not self-priming and require flooded suction. Pumps are not self-priming and require flooded suction.
Discharge Port Rotates in 90 degree Increments
NEMA Base Mounted Motor
(3) Front Drain Plugs, Located 90 degree Apart

Specifications

Brand
AMT
Catalog Number
5032-98
Type
AMT Straight Centrifugal Pumps
Model
5032-98
HP
2
Volts
115-208/230
Enclosure
TEFC
Frame
56J
Phase
1
Hz
60
Full Load Amps
28/14
Pump Curve
C
Suction
1-1/2
Discharge
1-1/4
Pump Length (In/cm)
15.3 [38.9]
Casing
Stainless Steel
SHAFT SEAL
Viton/SS
Impeller
Stainless Steel
Approx. Weight
65
RPM
3450
Max Solids
1/8" Diameter
QSP
QSP
Mounting Base
Not Included - Item # A201-102
Notes
See support documents
Pump Curves
See support documents

Support Documents (pdf)
