Little Giant

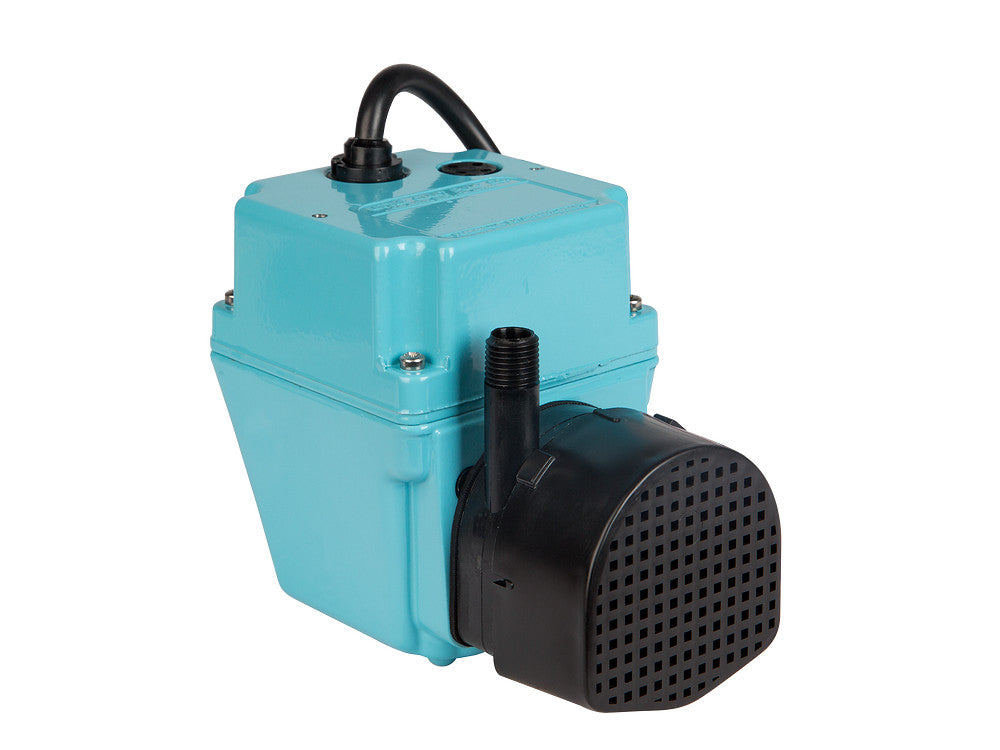

502303 Little Giant Oil-Filled Small Submersible Acidic Pump (Model # 2E-NDVR, 1/40 HP, 60 Hz, 1.7A, 115 VAC, 300 GPH Max, 0.38" MNPT Suction, 6' Cord)
502303 Little Giant Oil-Filled Small Submersible Acidic Pump (Model # 2E-NDVR, 1/40 HP, 60 Hz, 1.7A, 115 VAC, 300 GPH Max, 0.38" MNPT Suction, 6' Cord)
[COUNT] shoppers are looking at this right now
No reviews
SKU:502303
Precio habitual
$261.00 USD
Precio habitual
$406.00 USD
Precio de oferta
$261.00 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
502303 Little Giant Acidic Pump (Model # 2E-NDVR, 1/40 HP, 60 Hz, 1.7A, 115 VAC, 6 ft cord, 300 GPH Max)
Small submersible oil-filled pump with epoxy coated cast aluminum housing. For commercial, industrial and home applications including statuary fountains, water displays, air conditioners, machine tool coolants, and many other applications where liquid must be transferred or recirculated. This compact 300 GPH pump features a 1/4" MNPT discharge, 11.8' shut-off head capability, and screened inlet
Ratings |
|
| HP | 1/40 hp |
| Frequency | 60 Hz |
| Amps - Full Load | 1.7 A |
| Full Load Watts | 100 W |
| Volts | 115 VAC |
| Cord Length | 6 ft |
| Continuous Duty | Yes |
| Maximum Flow Rate - 60Hz | 5 gpm / 300 gph |
| Minimum Flow Rate - 60Hz | 0.42 gpm / 25 gph |
| Shut-Off | 11.8 ft |
| Minimum Head - 60Hz | 1 ft |
| Shut Off Height - 60Hz | 11.8 ft |
| Max PSIG - 60Hz | 5.1 PSI |
Liquid |
|
| Max Fluid Temperature | 120 °F |
Materials of Construction |
|
| Pump Body Material | Aluminum |
| Pump Volute Material | Nylon |
| Impeller Material | Nylon |
| Intake Screen Material | Polypropylene |
| Seal Material | Nitrile Rubber |
Installation |
|
| Discharge Type | Threaded - MNPT |
| Discharge | 0.5 " |
| Suction | 0.38 " |
| Suction Type | Threaded - FNPT |
| Product Length | 5.7 " |
| Product Width | 3.5 " |
| Product Height | 4.64 " |
| Pump Length | 5.7 " |
| Product Weight | 4.75 lb |
| Product Weight w/ Pack | 5.25 lb |
| Carton Length | 6.19 " |
| Carton Width | 6.19 " |
| Carton Height | 4.22 " |
