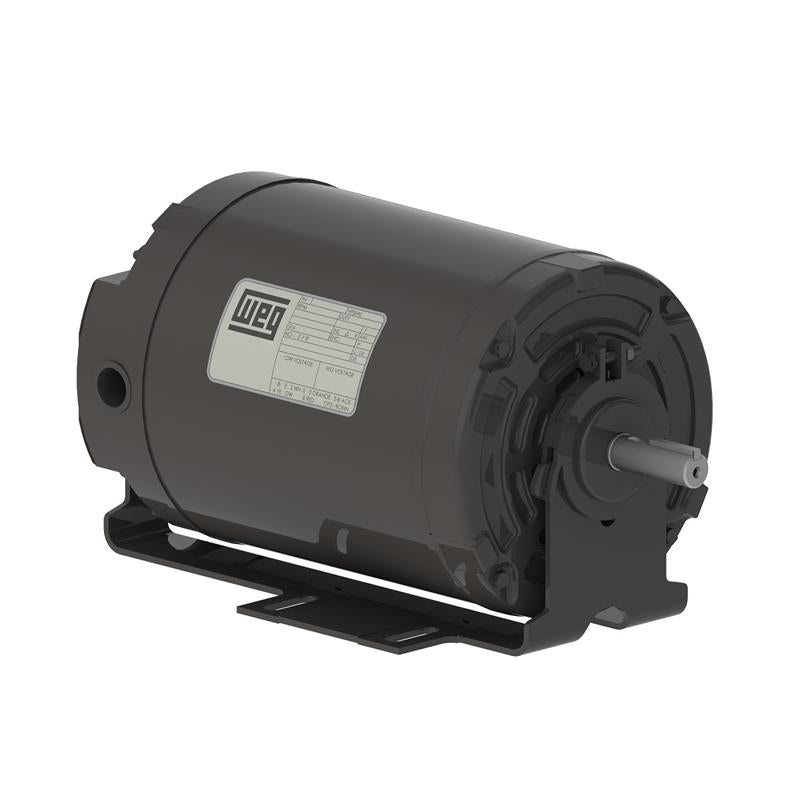

.5018ES1BRBPFC56 WEG Motor (0.5 HP, 1800 RPM, 1 Phase, C56 Frame, TEAO Enclosure, 115/208-230 Voltage)
.5018ES1BRBPFC56 WEG Motor (0.5 HP, 1800 RPM, 1 Phase, C56 Frame, TEAO Enclosure, 115/208-230 Voltage)
[COUNT] shoppers are looking at this right now
No reviews
SKU:.5018ES1BRBPFC56
Precio habitual
$0.00 USD
Precio habitual
$0.00 USD
Precio de oferta
$0.00 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
WEG .5018ES1BRBPFC56, 0.5 HP, 0.37 KW, 1800 RPM, 1 Phase, C56 Frame, TEAO Enclosure, 115/208-230 Voltage
| Applications | |
| WEG offers a complete line of TEFC Farm Duty motors providing high starting torque for the most demanding applications. Standard features such as v-rings provide versatility for indoor and outdoor applications. Overload protection available in all frames protects the motor from extreme overloads and offers maximum safety to operators. | |
| Features | |
| Double shielded ball bearings | |
| Insulation class B | |
| Automatic Reset Thermal Overload Protector | |
Specifications | |
Brand |
WEG |
Catalog Number |
.5018ES1BRBPFC56 |
Type |
Farm Duty Motors |
HP |
0.5 |
KW |
0.37 |
RPM |
1800 |
Phase |
1 |
C Dimension |
11.732 |
Service Factor |
1.25 |
Frame |
C56 |
Enclosure |
TEAO |
Full Load Amps |
4.2 |
Mount |
Resilient Base |
Voltage |
115/208-230 |
Warranty |
1 Year |
Support Documents (pdf) | ||||
