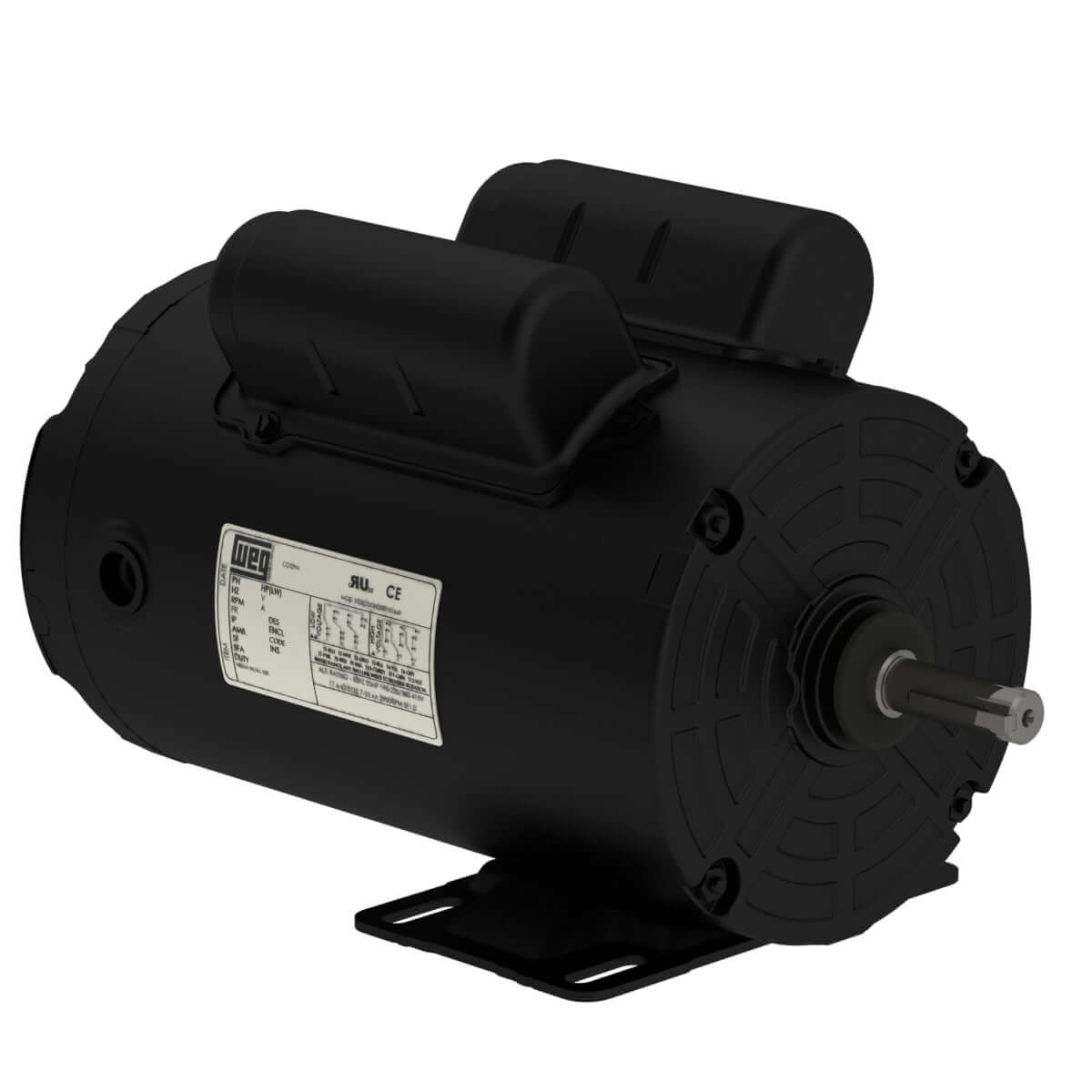

.5018AS1BPFW56-S WEG Poultry Fan Motor (Rolled Steel, 0.5 HP, 4P, W56 Frame, 1 Phase, 115/208-230 Volt, 60 Hz, TEAO, Foot Mounted)
.5018AS1BPFW56-S WEG Poultry Fan Motor (Rolled Steel, 0.5 HP, 4P, W56 Frame, 1 Phase, 115/208-230 Volt, 60 Hz, TEAO, Foot Mounted)
[COUNT] shoppers are looking at this right now
No reviews
SKU:.5018AS1BPFW56-S
Precio habitual
$299.04 USD
Precio habitual
$336.00 USD
Precio de oferta
$299.04 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
.5018AS1BPFW56-S WEG Poultry Fan Motor (Rolled Steel, 0.5 HP, 4P, W56 Frame, 1 Phase, 115/208-230 Volt, 60 Hz, TEAO, Foot Mounted)
| Frame | W56 |
|---|---|
| Output | 0.5 HP (0.37 kW) |
| Number of Poles | 4 |
| Frequency | 60 Hz |
| Rated speed | 1730 rpm |
| Slip | 3.89 % |
| Rated voltage | 115/208-230 V |
| Rated current | 8.06/3.93-4.03 A |
| L. R. Amperes | 51.6/25.2-25.8 A |
| LRC | 6.4x(Code N) |
| No load current | 7.60/3.20-3.80 A |
| Rated torque | 1.52 ft.lb |
| Locked rotor torque | 150 % |
| Breakdown torque | 254 % |
