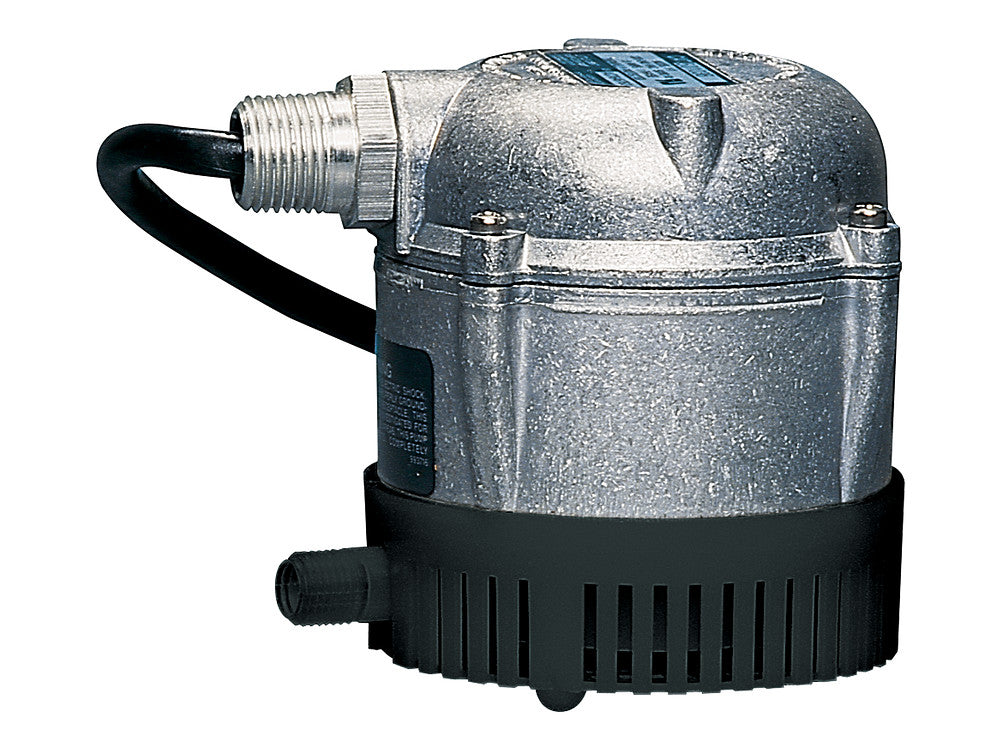

501036 Little Giant 1-YS Series Parts Washer Pump (Model # 1-YS, 1/150 HP, 50/60 Hz, 230 VAC, 205 GPH Max, 6 ft cord)
Oil-filled cast aluminum submersible pump for use with stoddard solvent and deodorized kerosene submerged parts washer applications only. Sealed unit has double-lip Viton® seal and nylon volute with 1/4" MNPT discharge. 6' power cord without plug has “Master Builders” conduit fitting at pump housing for mounting. For pumping unheated metal parts cleaning solvent which is UL classified as PJQU, as described in the Gas and Oil Equipment Directory. These refined petroleum distillates are free from tendency to heat spontaneously; they have a closed cup flash point not lower than 100°F. Thermally protected.
Ratings |
|
| HP | 1/150 hp |
| Frequency | 50Hz/60Hz |
| Amps - Full Load | 0.6 A |
| Full Load Watts | 70 W |
| Volts | 230 VAC |
| Cord Length | 6 ft |
| Maximum Flow Rate - 60Hz | 3.41 gpm / 205 gph |
| Minimum Flow Rate - 60Hz | 0.42 gpm / 25 gph |
| Max Flow Rate - 50Hz | 3.42 gpm / 205 gph |
| Shut-Off | 7.4 ft |
| Minimum Head - 60Hz | 1 ft |
| Shut Off Height - 50Hz | 7.4 ft |
| Shut Off Height - 60Hz | 7.4 ft |
| Max PSIG - 60Hz | 3.2 PSI |
Liquid |
|
| Max Fluid Temperature | 120 °F |
Materials of Construction |
|
| Pump Body Material | Aluminum |
| Pump Volute Material | Nylon |
| Impeller Material | Nylon |
| Intake Screen Material | Polyethylene |
| Seal Material | Viton Retainer |
Installation |
|
| Discharge Type | Threaded - MNPT |
| Discharge | 0.5 " |
| Suction Type | Screened |
| Product Length | 4.12 " |
| Product Width | 4.6 " |
| Product Height | 4.3 " |
| Pump Length | 4.12 " |
| Product Weight | 3 lb |
| Product Weight w/ Pack | 3.5 lb |
| Carton Length | 4.5 " |
| Carton Width | 4.25 " |
| Carton Height | 6.5 " |
