U.S. Motors

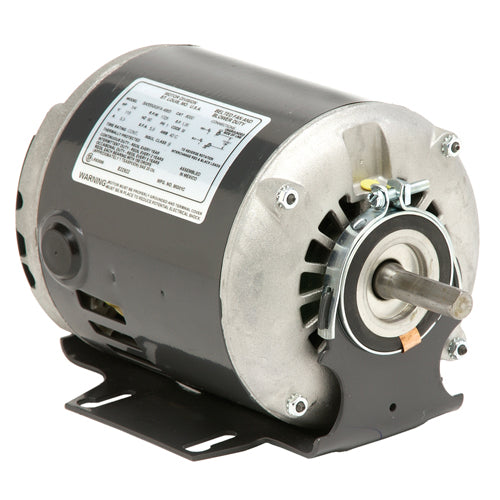

4293 U.S. Motors Split Phase Belted Fan and Blower Motor (1/2 HP, 115 Volts, 1725/1140 RPM/Spds.)

Name: 4293 U.S. Motors Split Phase Belted Fan and Blower Motor (1/2 HP, 115 Volts, 1725/1140 RPM/Spds.)
Brand: U.S. Motors
SKU: 4293
Price: 349.18 USD
Availability: InStock

SKU:4293

$349.18 USD

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

Cantidad

Don't see the price?

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.

US Motors Emerson 4293 HP: 1/2, RPM/Spds.: 1725/1140, Volts: 115, Frame: 56, Amps: 9.2, Shaft U: 0.625, Bearings: Slv, Protection: Auto, Enclosure: Open Dripproof,

Applications
Designed to meet manufacturer's requirements for belted fans and blowers.

Features
Resilient Base	Class B Insulation Unless Otherwise Noted
With Threaded Conduit Hole	Reversible Rotation
Automatic Reset Thermal Overload Protector

Tech Specs
Brand	U.S. Motors/Emerson
Model Number	4293
HP	1/2
RPM/Spds.	1725/1140
Volts	115
Frame	56
Amps	9.2
Shaft Length (N)	1.9
Shaft U	0.625
Apx. Wt. (lb)	26
Total C	10.8
Bearings	Slv
Protection	Auto
Enclosure	Open Dripproof
Type	Split Phase Belted Fan & Blower Motor
SF	1.25
Speed	Two Speed
Notes	See Product Literature

Support Documents (pdf)
Product Literature
