Barnes Pumps

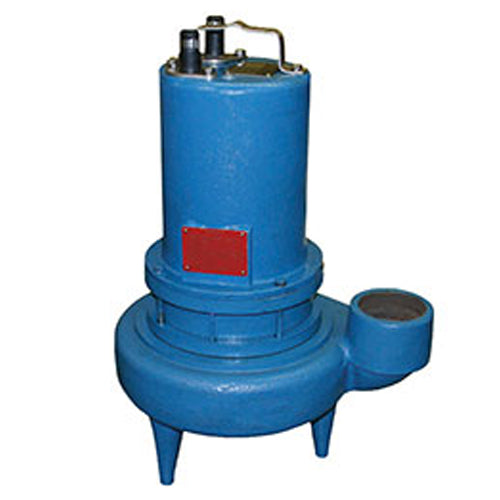

3SE2054L Barnes Submersible Non Clog Sewage Pump (2 HP, 575 Voltage, 3 Phase, 1750 RPM, Single Seal, 3" NPT Vertical Discharge)
3SE2054L Barnes Submersible Non Clog Sewage Pump (2 HP, 575 Voltage, 3 Phase, 1750 RPM, Single Seal, 3" NPT Vertical Discharge)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:132756
Precio habitual
$3,693.33 USD
Precio habitual
$5,540.00 USD
Precio de oferta
$3,693.33 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
Barnes 3SE2054L, Submersible Non Clog Sewage Pump Type, 2 HP, 575 Voltage, 3 Phase, 1750 RPM, Single Seal, 3" NPT Vertical Discharge,
| Applications | |
| Barnes Solids Handling pump series are commonly found in applications involving sewage, effluent, wastewater processing and solids laden media. Available in both standard and explosion proof configurations. Barnes Solids Handling pumps are constructed of durable cast iron with oil-filled motors to provide a pump tough enough to meet almost any application need. | |
| Features | |
| Solids Handling Capacity: 2-3 inches, depending on model | |
| Cast iron construction | |
| Epoxy sealed cord housing with strain relief grommet | |
| 125 lb. flange design | |
| 50,000 hour bearing life | |
Specifications | |
Brand |
Barnes |
Catalog Number |
3SE2054L |
Type |
Submersible Non Clog Sewage Pump |
Series |
3SE-L |
Part Number |
132756 |
HP |
2 |
Voltage |
575 |
Phase |
3 |
HZ |
60 |
RPM |
1750 |
Nema Start Code |
D |
Full Load Amps |
5.2 |
Locked Rotor Amps |
16.4 |
Cord Size |
14/4 |
Cord Type |
SOOW/SOW |
Cord O.D (in) |
0.570 |
Seal |
Single |
Discharge |
3" NPT Vertical |
Liquid Temperature |
104F Continuous |
Motor Housing |
Cast Iron ASTM |
Max Solid Handling Size |
2-1/2" |
Notes |
See Support Documents |
Support Documents (pdf) |
