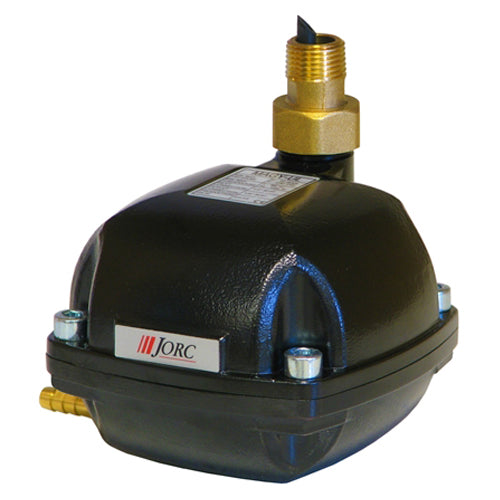

3952 JORC MINI-MAG Level Sensing Drain (1/2" NPT Inlet, 0-230 PSI Pressure)

3952 JORC MINI-MAG Level Sensing Drain (1/2" NPT Inlet, 0-230 PSI Pressure)

[COUNT] shoppers are looking at this right now

3952

$204.00 USD
$231.00 USD $204.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

JORC 3952, Jorc MINI-MAG drain for filters , 1/2" NPT Inlet, 0-230 PSI Pressure,
Applications
The MINI-MAG is a magnetically operated zero air loss drain that discharges condensate from all types of compressed air filters and refrigerated dryers by using a unique technology based on magnetic forces. The MINI-MAG uses specially selected magnets that operate the 2/2 way direct acting valve construction.
Features
Magnetically operated zero air loss drains which requires no control air or power source.
MINI-MAG includes anti-airlock adapter.
1/8" outlet with hose pipe connector
Serviceable valve
2/2 way direct acting valve assembly
Light weight, space saving design
Aluminum housing resists corrosion
Integrated air lock prevention
360 degree rotating outlet for easier installation

Specifications

Brand
JORC
Catalog Number
3952
Type
Jorc MINI-MAG drain for filters
Series
Magnetically operated drains
Part Number
3952
Inlet
1/2" NPT
Pressure
0-230 PSI
Dimensions
5.394" H x 5.687" W x 4.718" D
Max Filter Capacity
Unlimited
Max Drainage Capacity
37.8 gallons per hour
Valve Seals
FPM
Inlet Height
3.9"
Discharge Opening Diameter
2mm
Ambient Temperature
34 F to 122 F
Environmental Protection
NEMA 6 (IP 68)
Housing Material
Aluminum with ElectroPhoretic (EP) coating
