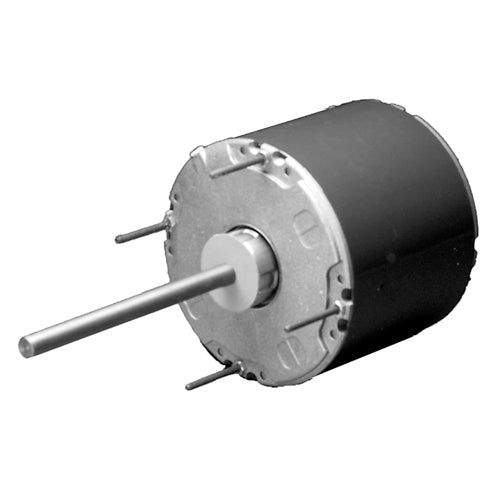

3851 Nidec U.S. Motors Permanent Split Capacitor Condenser Fan Motor (1/4 HP, 208-230 Volts, 60 Hz, 1 Phase, 1075 RPM, 48Y Frame, Open Air Over Enclosure)

3851 Nidec U.S. Motors Permanent Split Capacitor Condenser Fan Motor (1/4 HP, 208-230 Volts, 60 Hz, 1 Phase, 1075 RPM, 48Y Frame, Open Air Over Enclosure)

[COUNT] shoppers are looking at this right now

3851

$139.57 USD
$0.00 USD $139.57 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

US Motors Emerson 3851, HP: 1/4, RPM: 1075, Volts: 208-230, Diameter: 5.6", Enclosure: Open Dripproof, Air Over, For Cooling Fans

Applications
Designed to meet manufacturer's requirements for condenser cooling fans.
Features
High Efficiency Economizer Rated (except as noted) Green Ground Lead
60 Hz Reversible Rotation
Capacitor Mounting Holes in Frame Band Class B Insulation
Continuous Duty, Air Over 30" Leads
Water Slinger Double Flats on Shaft
Designed for use with 370V Capacitors Enclosed Endshield at Shaft End
Automatic Reset Thermal Overload Protector Sleeve Bearings have All Angle Thrust System

Tech Specs

Brand
U.S. Motors/Emerson
Model Number
3851
HP
1/4
RPM
1075
Volts
208-230
Bearings
Slv
Amps
1.7
Cap. MFD
5
Shaft N
5
Apx. Wt. (lb)
14
Shell XI
3.8
Total C
9.9
Diameter
5.6"
Enclosure
Open Dripproof, Air Over
Mount
Stud - Shaft Up or Horizontal
Notes
Without Capacitor
Type
Permanent Split Capacitor Condenser Fan Motor
OEM Replacement
-









Support Documents (pdf)
Product Literature
