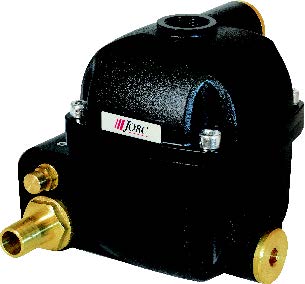

3806 Jorc NUFORS-XF Level Sensing Drain (Triple 3/4" NPT, 44-230 PSI)

The Jorc 3806 NUFORS-XF level sensing condensate drain valve is pneumatically operated. It has no air loss, and does not need a power source to operate. The level controlled valve controls a piston style valve that removes condensate from the system. Ideal for high volume applications where electricity is not available or unsafe. Works with compressed air systems up to 17500 CFM

• Three 3/4" NPT inlets (top & 2 sides)
• 3/4" outlet with brass hose barb adapter
• Rated for 44-230 PSI (3-16 bar)
• 3/2 way direct acting valve
• Built-in strainer protects valve
• TEST feature
• Serviceable valve
• No balance line needed
• Stable operation even emulsified condensate
• Easy installation

Specifications

• Dimensions- 5.94" Height x 6.29" Width x 5.63" Depth
• Max Compressor Capacity- 17500 CFM
• Max Drainage Capacity- 1260 gallons per hour at 230 PSI
• Valve Opening- 12 mm (0.47")
• Valve Seals- FPM
• Inlet Height- 5.9" (top), 5.2" & 0.7" (sides)
• Ambient Temperature- 34 F to 122 F (1 C to 50 C)
• Housing Material- Corrosion Resistant Aluminum with EP (ElectroPhoretic) Coating
• Ingress Protection- NEMA 6 (IP 68)
