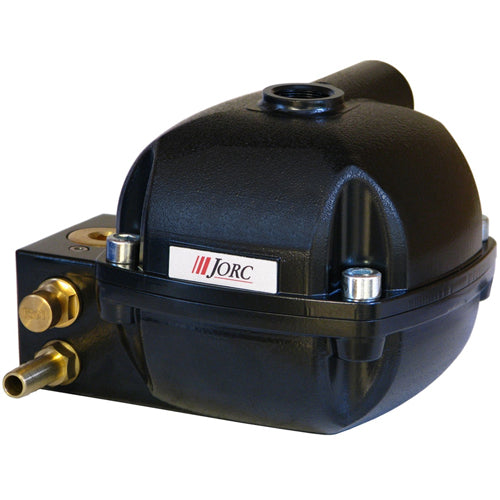

3805 Jorc POD-TD Level Sensing Drain (Triple 1/2" NPT, 44-230 PSI)
3805 Jorc POD-TD Level Sensing Drain (Triple 1/2" NPT, 44-230 PSI)
SKU:3805
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
The Jorc 3805 POD-TD level sensing drain is pneumatically operated. It has no air loss, and does not need a power source to operate. The level controlled valve controls a cylinder valve to remove condensate from the system. Ideal for applications where electricity is not available or unsafe. Works with compressed air systems up to 3500 CFM
- Three 1/2" NPT inlets (top & 2 sides)
- 1/4" outlet with hose pipe connector
- Rated for 44-230 PSI (3-16 bar)
- 3/2 way direct acting valve
- Built-in strainer protects valve
- TEST feature
- Serviceable valve
- No balance line needed for top inlet
- Stable operation even with particles or emulsified condensate
- Easy installation
Specifications
- Dimensions- 4.429" Height x 6.059" Width x 4.949" Depth
- Max Compressor Capacity- 3500 CFM
- Valve Opening- 6 mm
- Valve Seals- FPM
- Inlet Height- 4.7" (top), 3.8" & 0.6" (side)
- Ambient Temperature- 34 F to 122 F (1 C to 50 C)
- Housing Material- Corrosion Resistant Aluminum
- Ingress Protection- NEMA 6 (IP 68)
