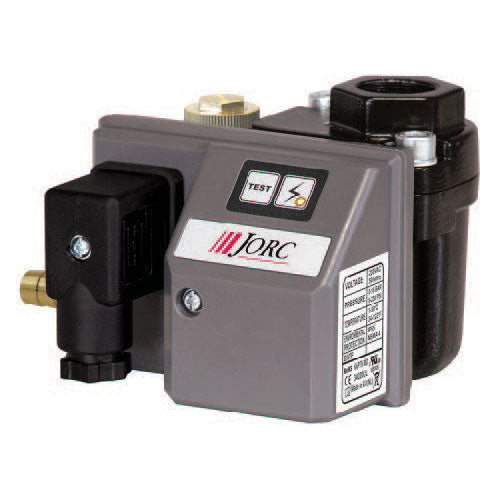

3622 JORC AC SMART-GUARD-MINI Level Sensing Electronic Drain (115 VAC, 0-230 PSI, 1/2" NPT, 1/4" Outlet with Hose Pipe Connector)

3622 JORC AC SMART-GUARD-MINI Level Sensing Electronic Drain (115 VAC, 0-230 PSI, 1/2" NPT)

Compact zero air loss condensate drains for applications up to 350 CFM.

The Jorc 3622 115V AC SMART-GUARD-MINI level sensing condensate drain valve has no air loss, and features an LED indicator as well as blockage detection and a space saving design. The level sensor controls a direct acting valve to remove condensate. The valve is on the outside for easy maintenance, while the electronic module & top cover are removable. Perfect for refrigerated dryers and filters. Comes with 6 ft power cord with plug.

• 115V AC
• 1/2" NPT inlet
• 1/4" outlet with hose pipe connector
• Rated for 0-230 PSI (0-16 bar)
• 2/2 way direct acting valve
• Built-in mesh strainer protects valve
• Lightweight
• Works with all compressor capacities up to 350 CFM
• TEST feature
• LED indicator
• Detects & attempts to clear blockages
• Serviceable valve
• Low inlet height
• Corrosion resistant valve housing

Specifications

• Dimensions- 2.913" H x 4.825" W x 3.639" D
• Max Compressor Capacity- 350 CFM
• Valve Opening- 2 mm
• Valve Seals- FPM
• Inlet Height- 2.9"
• Ambient Temperature- 34 F to 122 F (1 C to 50 C)
• Power Connector- DIN 43650 Form B
• Environmental Protection- NEMA 4 (IP 65)
• Housing Material- Aluminum, EP Coating
