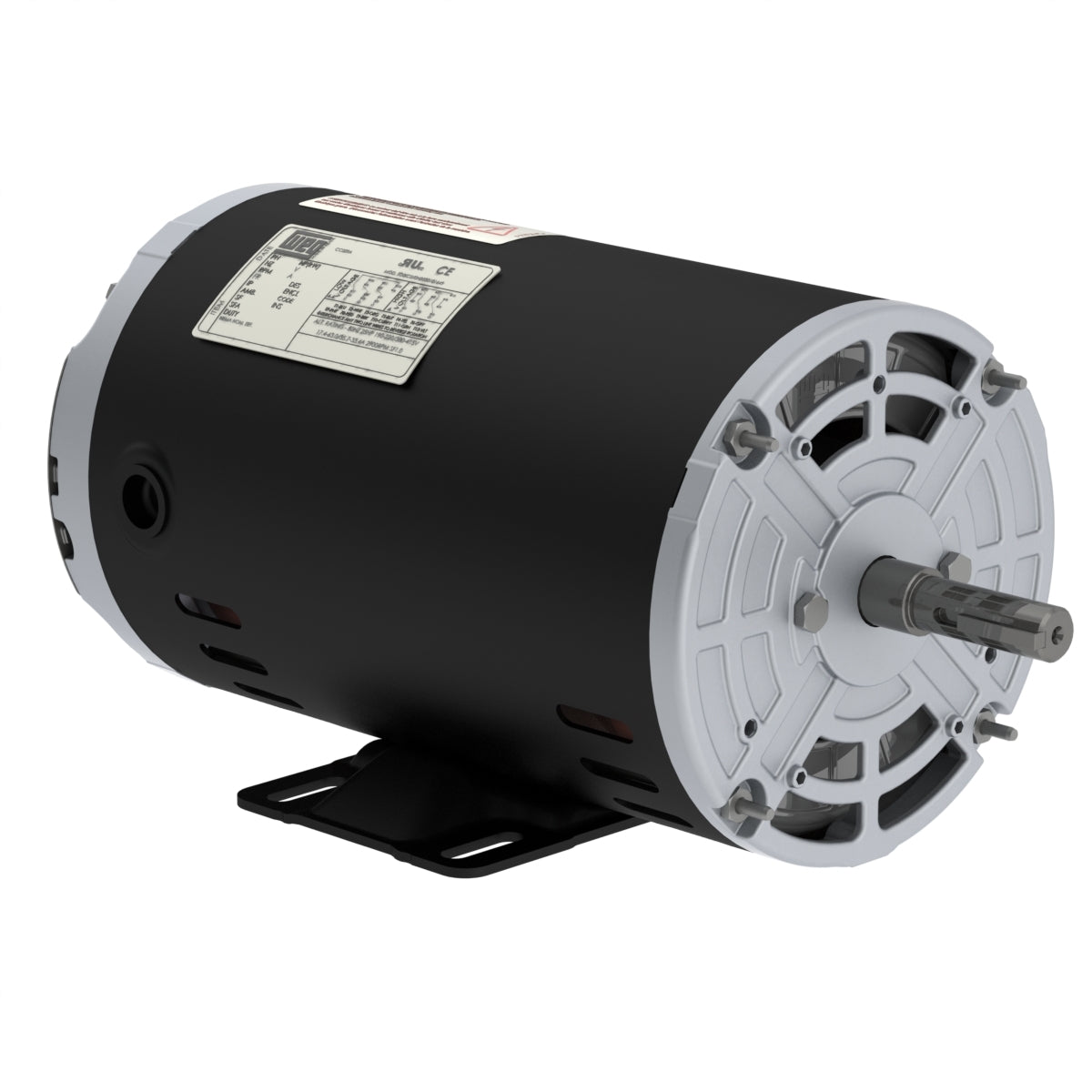

.3336OT3E56-S WEG Motor (.33 HP, 3600 RPM, 3 Phase, 60 Hz, 56 Frame, ODP, 230/460 V, Foot-Mount)
.3336OT3E56-S WEG Motor (.33 HP, 3600 RPM, 3 Phase, 60 Hz, 56 Frame, ODP, 230/460 V, Foot-Mount)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:.3336OT3E56-S
Precio habitual
$215.38 USD
Precio habitual
$242.00 USD
Precio de oferta
$215.38 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
WEG .3336OT3E56-S, .33 HP, 3600 RPM, 3 Phase, 60 Hz, 56 Frame, ODP, 230/460 V, Foot-Mount
| Applications |
| WEG Open Drip Proof (ODP) motor is a general purpose line designed for environments where dirt and moisture are minimal. The ODP cast iron frame is designed to provide maximum ventilation and heat dissipation, offering low vibration levels, high mechanical stiffness and durability. Widely used in applications such as compressors, pumps and chillers, the ODP motor line meets or exceeds the efficiency levels determined by International Standard sand the minimum efficiency level programs in worldwide. |
| Features |
| Rated Output: 0.25 to 25 HP |
| Number of Poles: 2 through 6 |
| Class F insulation |
| Frame Sizes: NEMA 56 to 254/6T |
| Efficiency levels: NEMA Premium |
| Frequency: 60 Hz (dual rated 50 Hz 190-220/380-415V) |
| IP21 standard |
| F1 mount as standard |
| Foot mount / C-face / Footless availability |
| Enclosure: ODP |
| Aluminum endshields |
|
Specifications |
|
|
Brand
|
WEG
|
|
Catalog Number
|
.3336OT3E56-S
|
|
Type
|
General Purpose Motor
|
|
HP
|
.33
|
|
RPM
|
3600
|
|
Phase
|
3
|
|
Frequency
|
60 Hz
|
|
Frame
|
56
|
|
Enclosure
|
ODP
|
|
Voltage
|
230/460
|
|
Mounting
|
Foot-Mount
|
|
Full Load Amps
|
0.61
|
|
Full Load Efficiency
|
69.5
|
|
Frame Material
|
Rolled Steel
|
|
Service Factor
|
1.35
|
|
"C" Dimensions
|
10.315
|
|
Warranty
|
1 Year
|
|
