U.S. Motors

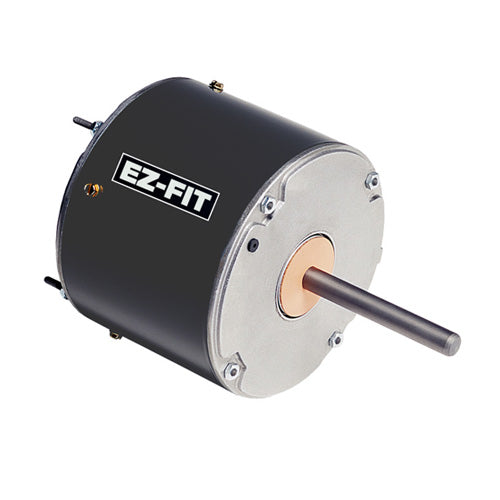

3323 US Motor Permanent Split Capacitor Motor (3323 - 0.333 HP - TEAO - 1075 RPM)
3323 US Motor Permanent Split Capacitor Motor (3323 - 0.333 HP - TEAO - 1075 RPM)
No reviews
SKU:3323
Precio habitual
$91.31 USD
Precio habitual
Precio de oferta
$91.31 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
No se pudo cargar la disponibilidad de retiro
3323 US Motor Permanent Split Capacitor Motor (3323 - 0.333 HP - TEAO - 1075 RPM)
Model_Number: K055WCT0244012B PRODUCT NAME: .333 HP - TEAO - 1075 PHASETYPE: 1_PERMANENT SPLIT CA MOTOR ENCLOSURE: TEAO HORSEPOWER: .333 HORSEPOWER 2: 0.167 KILOWATTS: 0.3 POLES: 6 NUMBER SPEEDS: 1 RPM: 1075 HERTZ: 60 VOLTS PRIMARY: 208-230 V VOLTS : 208 VOLTS 2: 230 FRME : 48 SHAFT CODE: Y STATOR DIAMETER: 5.5 STACK: 1.5 MOUNTING: STUD MOTOR TYPE: FHP OPPOSITE END BEARING: 6201 SHAFT END BEARING: 6201 AMBIENT: 60 ROTATION: CCW LEAD END REV SERVICE FACTOR: 1 RUNCAPMFD: 7.5 RUNCAPVOLTS: 370 SHIPPING WEIGHT: 13 THERMAL PROTECTION: AUTOMATIC RESET BREAKDOWN TORQUE: 41.35 BREAKDOWN TORQUE UOM: OZFT LOCKED ROTOR TORQUE: 7.514 LOCKED ROTOR TORQUE UOM: OZFT INSULATION CLASS: B LOCKED ROTOR AMPS: 4.66 FULL LOAD AMPS PRIMARY: 2.0 SERVICE FACTOR AMPS PRIMARY: 2.0
Compartir
- Questions about this product? Contact our team!
- Product images may be generic.
