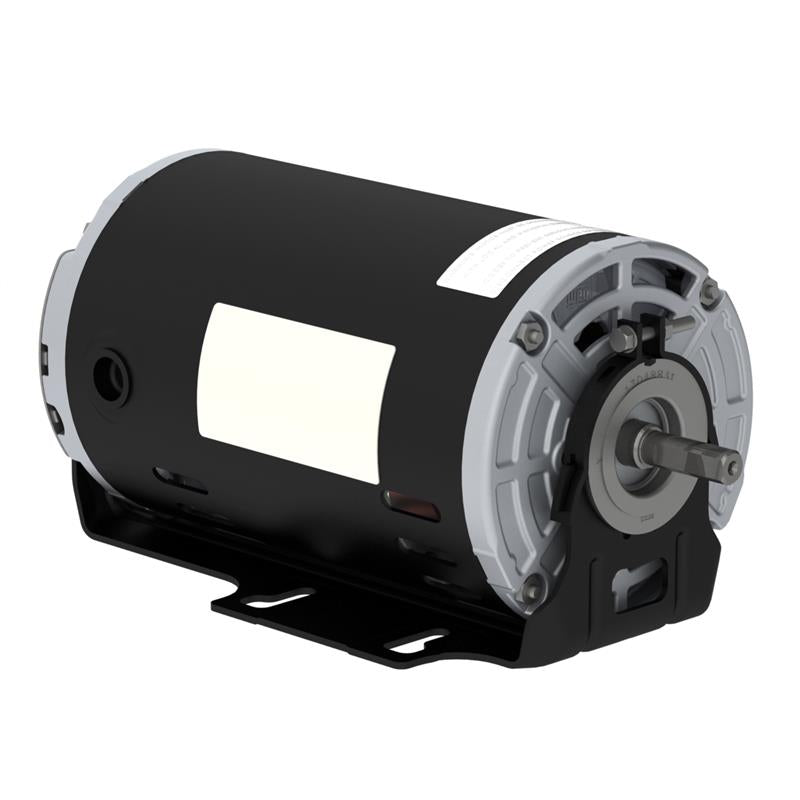

.3318OT3ERB56-S WEG Motor (0.33 HP, 0.25 KW, 3 Phase, 1800 RPM, 56 Frame, ODP, 230/460 V, Resilient Base)
.3318OT3ERB56-S WEG Motor (0.33 HP, 0.25 KW, 3 Phase, 1800 RPM, 56 Frame, ODP, 230/460 V, Resilient Base)
SKU:.3318OT3ERB56-S
Precio habitual
$228.83 USD
Precio habitual
Precio de oferta
$228.83 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
No se pudo cargar la disponibilidad de retiro
WEG .3318OT3ERB56-S, 0.33 HP, 0.25 KW, 3 Phase, 1800 RPM, 56 Frame, ODP, 230/460 V, Resilient Base
| Applications | |
| WEG Open Drip Proof (ODP) motor is a general purpose line designed for environments where dirt and moisture are minimal. | |
| Features | |
| Rated Output: 0.25 to 25 HP | |
| Number of Poles: 2 through 6 | |
| Class F insulation | |
| Frame Sizes: NEMA 56 to 254/6T | |
| Efficiency levels: NEMA Premium | |
| Frequency: 60 Hz (dual rated 50 Hz 190-220/380-415V) | |
| IP21 standard | |
| F1 mount as standard | |
| Foot mount / C-face / Footless availability | |
| Double shielded ball bearings on frames 56 to 213/5T. Optional double sealed ball bearings and/or bearing cap | |
| Aluminum endshields | |
Specifications | |
Brand |
WEG |
Catalog Number |
.3318OT3ERB56-S |
Type |
General Purpose Motor |
HP |
0.33 |
KW |
0.25 |
RPM |
1800 |
Phase |
3 |
Frame |
56 |
Enclosure |
ODP |
Voltage |
230/460 |
FL Amps |
0.67 |
FL Efficiency |
73.4 |
Frame Material |
Rolled Steel |
Service Factor |
1.35 |
"C" Dimensions |
10.827 |
Mounting |
Resilient Base |
Item Condition |
Factory New |
Warranty |
1 Year |
Support Documents (pdf) | ||||
