U.S. Motors

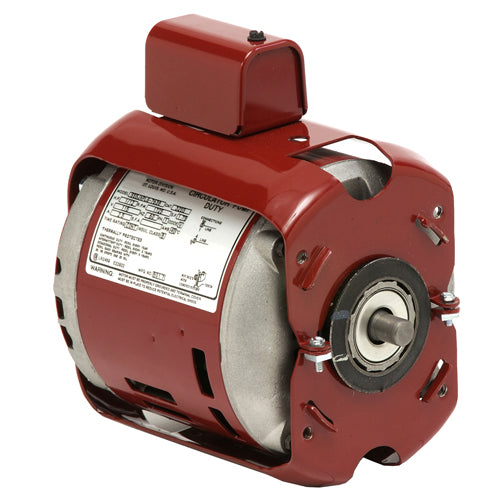

3258 US-Nidec OEM Replacement Motor (0.5 HP, OPDP Enclosure, 1725 RPM, Capacitor Start Capacitor Run, Resilient Hub Rings, NEMA Frame 56YZ, 115/208-230 Volt)
3258 US-Nidec OEM Replacement Motor (0.5 HP, OPDP Enclosure, 1725 RPM, Capacitor Start Capacitor Run, Resilient Hub Rings, NEMA Frame 56YZ, 115/208-230 Volt)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:
Precio habitual
$433.44 USD
Precio habitual
$462.00 USD
Precio de oferta
$433.44 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
* If you are tax exempt, email your tax form to Sales@kgpowersystems.com
3258 US-Nidec OEM Replacement Motor (0.5 HP, OPDP Enclosure, 1725 RPM, Capacitor Start Capacitor Run, Resilient Hub Rings, NEMA Frame 56YZ, 115/208-230 Volt)
Model_Number
T055THJ1232R14B
PRODUCT NAME
.5 HP - OPDP - 1725
PHASETYPE
1_CAPACITOR START - CAPACITOR RUN
MOTOR ENCLOSURE
OPDP
HORSEPOWER
.5
KILOWATTS
0.4
POLES
4
NUMBER SPEEDS
1
RPM
1725
HERTZ
60
VOLTS PRIMARY
115/208-230 V
VOLTS
115
VOLTS 2
208
VOLTS 3
230
FRME
56
SHAFT CODE
Y
STATOR DIAMETER
5.5
STACK
2.25
MOUNTING
BRACKET
MOTOR TYPE
FHP
OPPOSITE END BEARING
6203
SHAFT END BEARING
6203
AMBIENT
50
ROTATION
CW LEAD END REV
SERVICE FACTOR
1.5
RUNCAPMFD
25
RUNCAPVOLTS
370
STARTCAPMFD
255.15
SHIPPING WEIGHT
22
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
83.35
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
84.72
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
KVA CODE LETTER
L
LOCKED ROTOR AMPS
37.56
NEMA NOMINAL EFFICIENCY
76
FULL LOAD AMPS PRIMARY
5.7/2.9-3.0
SERVICE FACTOR AMPS PRIMARY
7.8/4.3-4.0
