U.S. Motors

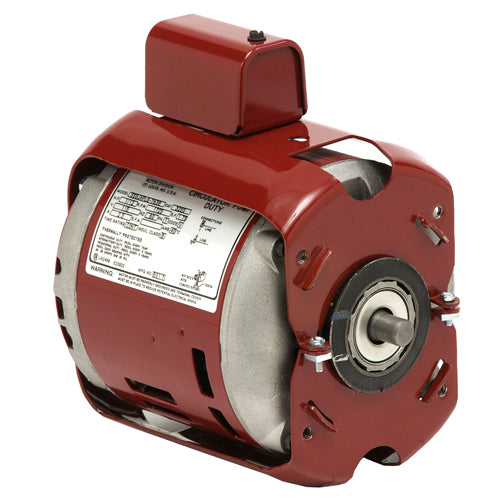

3257 US Nidec Hot Water Circulating Pump Motor (0.167 HP, OPDP Enclosure, 1725 RPM, Split Phase, 48YZ NEMA Frame, 115 Volt, Resilient Hub Rings)

3257 US Nidec Hot Water Circulating Pump Motor (0.167 HP, OPDP Enclosure, 1725 RPM, Split Phase, 48YZ NEMA Frame, 115 Volt, Resilient Hub Rings)

👁️ [COUNT] People are currently viewing this product.

3257

$263.45 USD
$281.00 USD $263.45 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

* If you are tax exempt, email your tax form to Sales@kgpowersystems.com

3257 US Nidec Hot Water Circulating Pump Motor (0.167 HP, OPDP Enclosure, 1725 RPM, Split Phase, 48YZ NEMA Frame, 115 Volt).

Model_Number
S055THH7892011B
PRODUCT NAME
.167 HP - OPDP - 1725
PHASETYPE
1_SPLIT PHASE
MOTOR ENCLOSURE
OPDP
HORSEPOWER
.167
KILOWATTS
0.1
POLES
4
NUMBER SPEEDS
1
RPM
1725
HERTZ
60
VOLTS PRIMARY
115 V
VOLTS
115
FRME
48
SHAFT CODE
YZ
STATOR DIAMETER
5.5
STACK
1
MOUNTING
BRACKET
MOTOR TYPE
FHP
OPPOSITE END BEARING
6203
SHAFT END BEARING
6203
AMBIENT
50
ROTATION
CCW LEAD END
SERVICE FACTOR
1.75
SHIPPING WEIGHT
14
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
25.73
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
22.16
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
KVA CODE LETTER
U
LOCKED ROTOR AMPS
28.49
NEMA NOMINAL EFFICIENCY
51.4
FULL LOAD AMPS PRIMARY
3.8
SERVICE FACTOR AMPS PRIMARY
4.9
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • ALL IMAGES SHOWN ON OUR WEBSITE ARE FOR ILLUSTRATION PURPOSE ONLY AND MAY NOT BE AN EXACT REPRESENTATION OF THE PRODUCT. ACTUAL PRODUCTS MAY VARY FROM THE IMAGES SHOWN.
Ver todos los detalles
