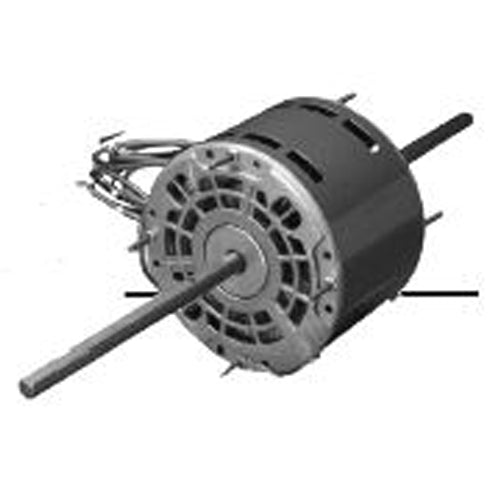

3135 U.S. Motors Double Shaft Fan and Blower Motor (1/3 HP, 230 Volts, 1075/3 RPM/Spds.)

US Motors Emerson 3135 HP: 1/3, RPM/Spds.: 1075/3, Volts: 230, Cap MFD: 5, Amps: 2.5, Bearings: Slv, Shaft Length (N): 8, Total C: 21.1, Mount: Hub or Stud Mount, Permanent Split Capacitor

Applications
Design to meet manufacturer's requirements for blowers utilizing a double-shaft motor.
Features
Automatic Reset Thermal Overload Protector	Mounting Holes in Shell for Mounting Capacitor
CCW Rotation Lead End	20" Leads
Sleeve Bearings Have All Angle Thrust System	Class B Insulation
Continuous Duty, Air Over	Open Dripproof, Air Over, Except Where Noted
Designed for Use with 370V Capacitors

Tech Specs
Brand	U.S. Motors/Emerson
Model Number	3135
HP	1/3
RPM/Spds.	1075/3
Volts	230
Cap MFD	5
Amps	2.5
Bearings	Slv
Shaft Length (N)	8
Apx. Wt. (lb)	14
Shell XI	4.6
Total C	21.1
Shaft XN	8
Speed	Three
Mount	Hub or Stud Mount
Enclosure	Open Dripproof, Air Over
Notes	Without Capacitor and Mounting Kit
Diameter	5.6"
Type	Double Shaft Fan & Blower Motor
