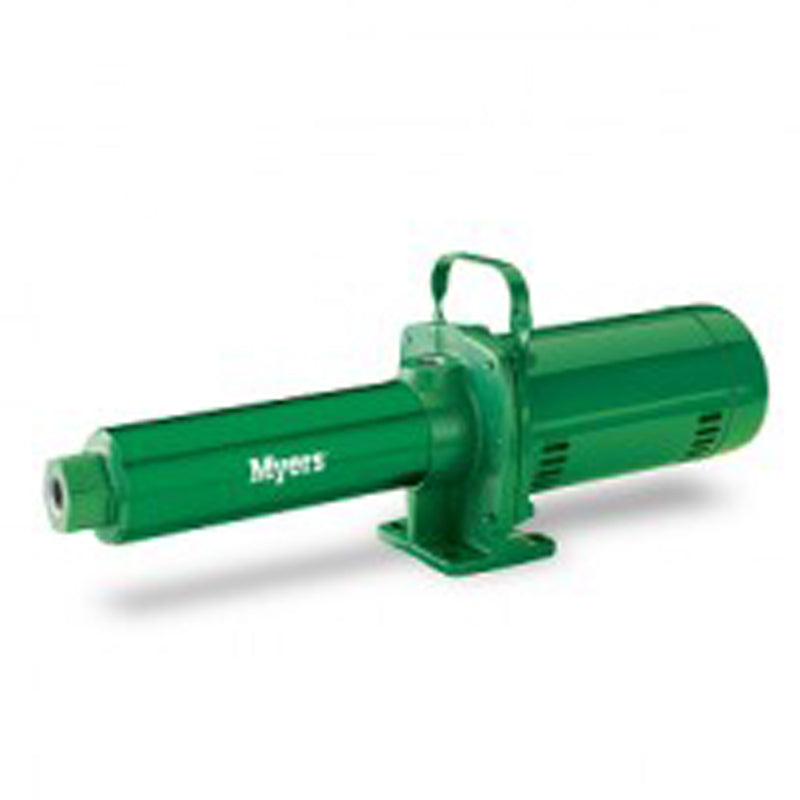

Myers 30MPB150, High Pressure Booster Pump Type, MPB Series, 1-1/2 HP, 1 Phase, 115/230 Voltage, 30 GPM,
| Applications | |
| Car wash, filtration and reverse osmosis, residential, commercial or agricultural pressure washing, booster and spray systems, HVAC, general purpose pumping. | |
| Features | |
| The MPB Booster Pumps are the most durable booster pump available. The proven SignaSeal floating impeller design minimizes thrust loads allowing for continuous operation withoutdamage to motor bearings, mechanical seal or pump hydraulic components. | |
| True back pull-out design allows impeller and bearing frame to be backed out of volute without disturbing plumbing or mounting fixture, saving time needed for preventive maintenance | |
| Precision fit impellers are designed to maximize hydraulic pressure and water delivery at each stage | |
| Staging system uses ceramic wear surface for superior wear and heat resistance that's tougher than steel | |
| Compact, lightweight design grabs first place for faster installation and improved economy | |
| Versatile mounting base is specially designed to be an easy fit on a wider variety of challenging applications | |
| BODY CONSTRUCTION: 304 Grade Stainless Steel | |
| MAX LIFT: 15 feet | |
| MAXIMUM TOTAL PRESSURE: Pump Pressure + Inlet Pressure Not To Exceed 315 PSI | |
| AMP DRAW (at full load): max of 26 Amps (2 HP running on 115v) | |
Specifications | |
Brand |
Myers |
Catalog Number |
30MPB150 |
Type |
High Pressure Booster Pump |
Series |
MPB |
HP |
1-1/2 |
Phase |
1 |
Voltage |
115/230 |
Stages |
6 |
Inlet |
1-1/4 |
Outlet |
1-1/4 |
GPM |
30 |
Max. Inlet Pressure |
80 PSI |
Max. Working Pressure |
315 PSI |
Shell |
300 series stainless steel |
Motor Enclosure |
ODP |
Notes |
See Support Documents |
