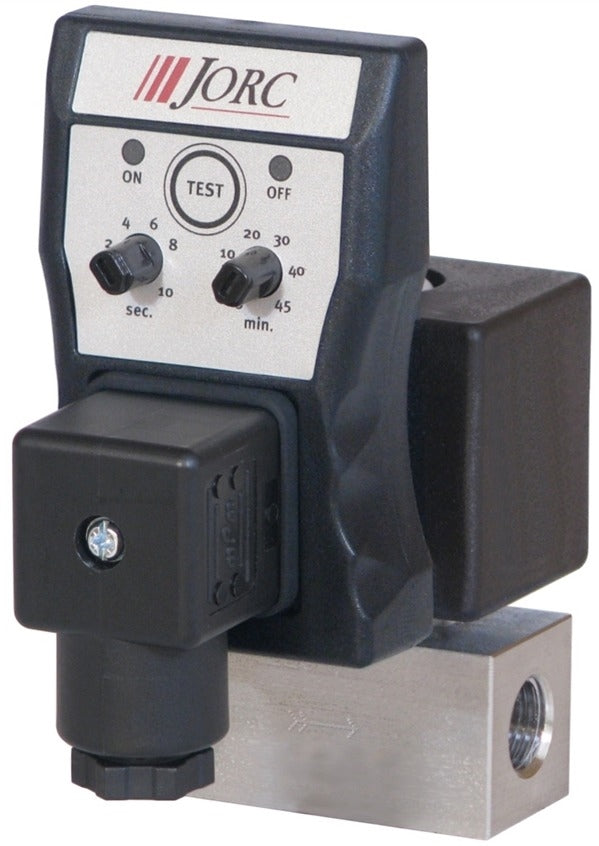

2951 JORC Timer Controlled Condensate Drain (Unlimited Max Compressor Capacity, 1/4" NPT, 115V, 1.0 MM Orifice Size, IP65/ NEMA 4 Enclosure)

JORC 2951, Optimum-Stainless Steel Series, Unlimited Max Compressor Capacity, 0.25 Valve Port, 5000 PSI, 1.0 MM Orifice Size, 115 VAC Timer Working Voltage, IP65/ NEMA 4 Enclosure

Applications
The OPTIMUM-S Drain Assembly consists of a solid-state timer coupled to a solenoid valve and only requires a simple installation procedure. The unit is suitable for ALL compressed air system components (aftercoolers, dryers, filters, pressure vessels and piping), regardless of their size or capacity - simply adjust the interval and discharge times to suit the particular compressed air system requiring stainless steel valves.
Features
Timer Manual TEST switch- Yes, micro switch
Timer Environmental Protection- IP 65, NEMA 4 when installed
Valve Insulation- H-grade
Valve Environmental Protection- IP 65 (NEMA 4)
Valve Body- Forged brass, orifice 4mm
Mounting in any position - Yes

Specifications
Brand	JORC
Catalog Number	2951
Type	Timer Controlled Condensate Drain
Series	Optimum-Stainless Steel
Max Compressor Capacity	Unlimited
Valve Port	1/4" NPT
PSI	0-5000
Orifice Size	1.0 MM
Timer Working Voltage	115 VAC
Valve Temperature	35 - 130
Body Material	Stainless Steel
Enclosure	IP65/ NEMA 4
Seal	FPM
Type of Operating Valve	Direct Acting
Hertz	50/ 60
Notes	See Support Documents
