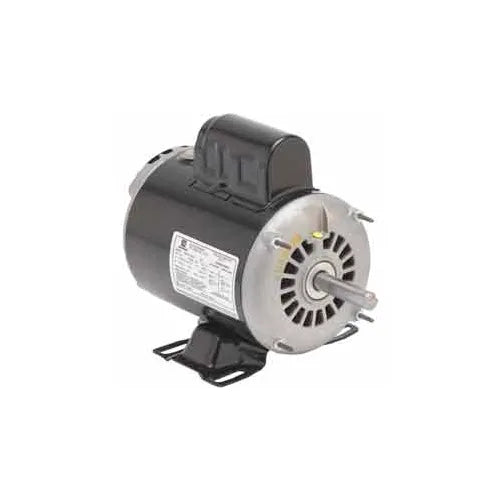

2910 US Motor General Purpose Motor (.25 HP, 1725 RPM, OPEN, 56 Frame, 115V)
2910 US Motor General Purpose Motor (.25 HP, 1725 RPM, OPEN, 56 Frame, 115V)
[COUNT] shoppers are looking at this right now
No reviews
SKU:2910
Precio habitual
$126.05 USD
Precio habitual
$0.00 USD
Precio de oferta
$126.05 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
2910 US Motor General Purpose Motor (.25 HP, 1725 RPM, OPEN, 56 Frame, 115V)
| Model_Number: | SA55SGP5441722B |
| PRODUCT NAME: | .25 HP - OPEN - 1725 |
| PHASETYPE: | 1_SPLIT PHASE |
| MOTOR ENCLOSURE: | OPEN |
| HORSEPOWER: | .25 |
| KILOWATTS: | 0.2 |
| POLES: | 4 |
| NUMBER SPEEDS: | 1 |
| RPM: | 1725 |
| HERTZ: | 60 |
| VOLTS PRIMARY: | 115 V |
| VOLTS : | 115 |
| FRME : | 56 |
| SHAFT CODE: | Z |
| STATOR DIAMETER: | 5.5 |
| STACK: | 1.5 |
| MOUNTING: | RIGID |
| MOTOR TYPE: | 000 |
| OPPOSITE END BEARING: | 6203 |
| SHAFT END BEARING: | 6203 |
| AMBIENT: | 40 |
| ROTATION: | REVERSIBLE |
| SHIPPING WEIGHT: | 23 |
| THERMAL PROTECTION: | NONE |
| BREAKDOWN TORQUE: | 39.83 |
| BREAKDOWN TORQUE UOM: | OZFT |
| LOCKED ROTOR TORQUE: | 27.29 |
| LOCKED ROTOR TORQUE UOM: | OZFT |
| INSULATION CLASS: | A |
| LOCKED ROTOR AMPS: | 39.7 |
| FULL LOAD AMPS PRIMARY: | 5.4 |
