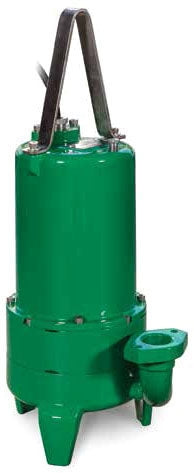

28200D000 Myers Cast Iron Automatic Grinder Pump (Model # VRS20A-21, VR2 Series, 2 HP, 230 Volt, 1 Phase, 1-1/4" NPT Discharge, 60 Hz, 15 FLA, 20' Cord, Auto Switch)

28200D000 Myers Cast Iron Automatic Grinder Pump (Model # VRS20A-21, 2 HP, 230 Volt, 1 Phase, 1-1/4" NPT Discharge, 60 Hz, 15 FLA, 20' Cord, Auto Switch)

The new MYERS VR2 grinders feature a patented axial cutter technology that easily slices through solids and trash found in domestic wastewater without roping or clogging. They come with plenty of standard features to make installation a breeze.

A. Wide Angle Float Switch
• Piggy-back cord for easy maintenance

B. Cable Entry System
• Cable jacket sealed by compression fitting and individual wires sealed by compression grommet for double seal protection against water ingress

C. Oil-Filled Motor
• Maximizes heat dissipation and provides constant bearing lubrication for long life
• High torque start/run capacitor for single phase motors for assured starting under
heavy loads.
• Internal capacitors eliminate need for control panel

D. Integrated Heat Sensor
• Protects motor from burnout due to excessive heat from any overload condition. Automatically resets when motor has cooled

E. Shaft and Fasteners
• Stainless steel for maximum corrosion resistance and long life

F. Shaft Seals
• Oil lubricated single carbon and ceramic faced seal provides motor protection

G. Impeller
• Semi-open impeller handles ground slurry without clogging or binding
• Pump-out vanes help keep trash from seal and reduces pressure at seal face for longer life

H. Axial Cutter System
• Easily slice through solids and trash commonly found in domestic wastewater without roping or clogging
• Constructed of 440 SST hardened to 57- 60Rc for long life
• Easily replaceable without dismantling pump

I. Volute Case
• Cast iron, 1-1/4” vertical, flanged discharge
