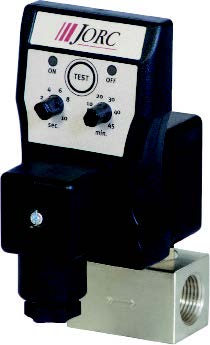

2610 JORC OPTIMUM drain with stainless steel valve (115 VAC, 1/4" NPT Inlet and Outlet, 0 - 230 psi, 6' Power Cord w/ Plug.)

2610 JORC OPTIMUM drain (115 VAC, 1/4" NPT, 0 - 230 psi).

OPTIMUM drains with stainless steel valves. Stainless steel timer controlled drains for applications up to 230 psi.

The Jorc 2610 OPTIMUM timer controlled drain has a 304 stainless steel housing and features LED indicators, adjustable timers, direct acting solenoid valve, and a 4.5mm opening. It is ideal for air compressors, refrigerated air dryers, filters, and other types of compressed air applications, including those with high flow rates. Includes 6 foot power cord with plug.

• 115V AC
• 1/4" NPT inlet & outlet
• Rated for 0-230 PSI (0-16 bar)
• Serviceable valve
• Does not air lock while in use
• Made for any type & any size compressed air system
• TEST feature
• Accurate time cycles
• LEDs indicate timer cycle status

Specifications

• Dimensions- 4.469" Length x 1.969" Width x 3.518" Depth
• Max Compressor Capacity- Any Size
• Ambient Temperature- 34 F to 131 F (1 C to 55 C)
• Timer Cycle Range (On/Off)- 0.5-10 sec / 0.5-45 min
• Timer PCB- SMD Technology
• Timer Cycle Indication- LEDs
• Valve Type- 2/2 Way, Direct Acting
• Valve Opening- 4.5 mm (0.177")
• Valve Seals- FPM
• Inlet Connection Height- 10 mm (0.4")
• Timer Housing Material- ABS Plastic
• Valve Housing Material- 304 Stainless Steel
• Power Connection- DIN 43650 Form A (included)
• Environmental Protection- NEMA 4 (IP 65 - total protection from dust & water jets in any direction)
