WEG

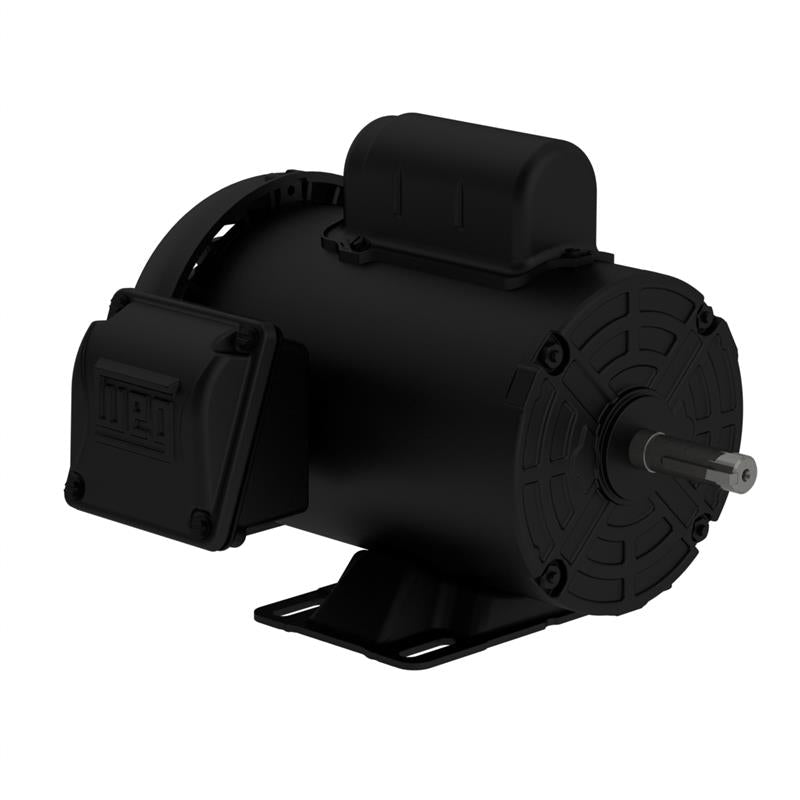

.2518ES1BW56-S WEG General Purpose Motor (.25 HP, 1800 RPM, 1 Phase, W56 Frame, TEFC, 115/208-230 Voltage, Foot Mount)
.2518ES1BW56-S WEG General Purpose Motor (.25 HP, 1800 RPM, 1 Phase, W56 Frame, TEFC, 115/208-230 Voltage, Foot Mount)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:.2518ES1BW56-S
Precio habitual
$237.63 USD
Precio habitual
$267.00 USD
Precio de oferta
$237.63 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
* If you are tax exempt, email your tax form to Sales@kgpowersystems.com
WEG .2518ES1BW56-S, General Purpose Motor, .25 HP, 1800 RPM, 1 Phase, W56 Frame, TEFC, 115/208-230 Voltage, Foot Mount
| Applications | |
| High Starting Torque makes these motors ideal for a wide range of applications. | |
| Features | |
| High Starting Torque | |
| Ball Bearings | |
| NPT Threaded Holes in Terminal Box | |
| Class F insulation | |
| F1 Mounted | |
| V-Ring Seals | |
Specifications | |
Brand |
WEG |
Catalog Number |
.2518ES1BW56-S |
Type |
General Purpose Motor |
HP |
.25 |
RPM |
1800 |
Phase |
1 |
Frame |
W56 |
Service Factor |
1.15 |
Enclosure |
TEFC |
Voltage |
115/208-230 |
Motor Mount |
Foot Mount |
Full Load Efficiency |
57 |
Full Load AMPS |
2.3 |
"C" Dimension |
11.106 |
Warranty |
1 Year |
Support Documents (pdf) | ||||
