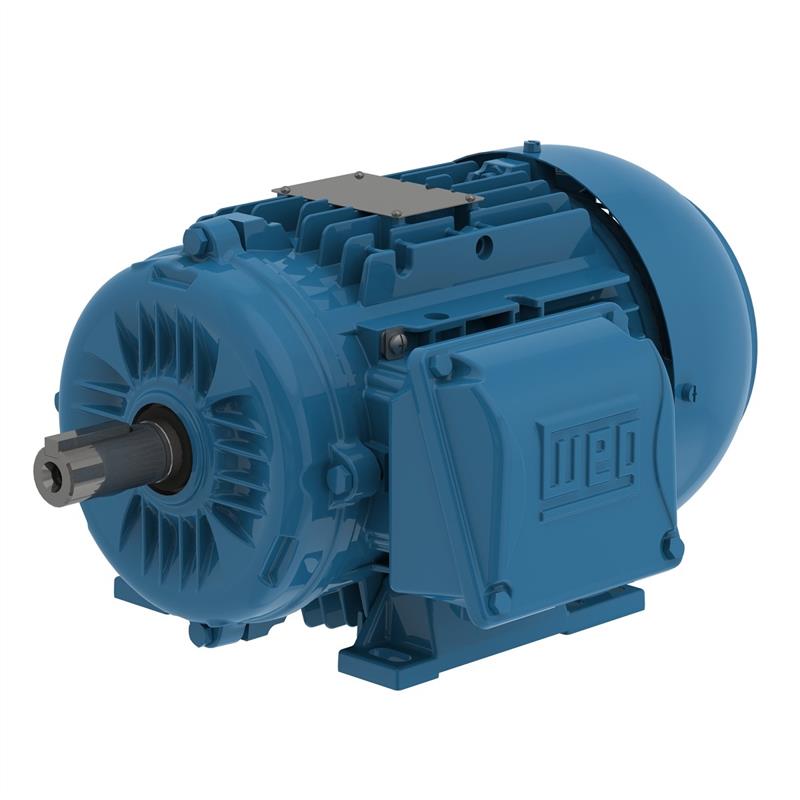

.2518EP3EAL71-W22 WEG Motor, IEC Tru-Metric Motor (0.33 HP, 71 FRAME, 460 V, THREE PHASE, TEFC , 1710 RPM)

.2518EP3EAL71-W22 WEG Motor, IEC Tru-Metric Motor (0.33 HP, 71 FRAME, 460 V, THREE PHASE, TEFC , 1710 RPM)

👁️ [COUNT] People are currently viewing this product.

.2518EP3EAL71-W22

$250.98 USD
$282.00 USD $250.98 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

WEG Motor .2518EP3EAL71, 0.33 HP, RPM: 1710, FRAME: 71, 460 V, THREE PHASE: 60 Hz, : TEFC, IEC Tru-Metric Motor

Applications
Blowers, Compressors, Pumps, Conveyor, Textiles, Marine duty
Features
IEC Tru-Metric Motor, 3-Phase, Cast Iron or Aluminum, High Efficiency, TEFC

Tech Specs

Brand
WEG Motors
Model Number
.2518EP3EAL71
HP
0.33 HP
RPM
1710
FRAME
71
VOLTAGE
460 V
PHASE
THREE
FREQUENCY
60 Hz
ENCLOSURE
TEFC
APPROXIMATE WEIGHT (lb)
20
FEET
YES
TERMINAL BOX
RIGHT
FLANGE
-
RATED CURRENT
0.682 A
LOCKED ROTOR CURRENT IL IN
5
LOCKED ROTOR CURRENT
3.41 A
LOCKED ROTOR TORQUE
3.1
BREAKDOWN TORQUE
3.4
EFFICIENCY 50
66
EFFICIENCY 75
71
EFFICIENCY 100
73
POWER FACTOR 50
0.42
POWER FACTOR 75
0.54
POWER FACTOR 100
0.63
SERVICE FACTOR
1.15
INERTIA KGM2
0.00079 kgm
INERTIA SQ FT
0.01875 sq.ft.
LOCKED ROTOR TIME
32 s
NOISE LEVEL
47 dB(A)
ALTITUDE
1000
DUTY CYCLE
S1
AMBIENT TEMPERATURE
-20C - +40C
DEGREE OF PROTECTION
IP55
NO-LOAD CURRENT
0.500 A
INSULATION CLASS
F
FULL LOAD TORQUE NM
1.36 Nm
FULL LOAD TORQUE FT
1.000 .ft
SLIP
0.05
DESIGN
N
TEMPERATURE RISE
80 K
BEARINGS D E
6203 ZZ
BEARINGS N D E
6202 ZZ
REGREASING INTERVAL D E
-
REGREASING INTERVAL N D E
-
GREASE AMOUNT D E
-
GREASE AMOUNT N D E
-
