WEG

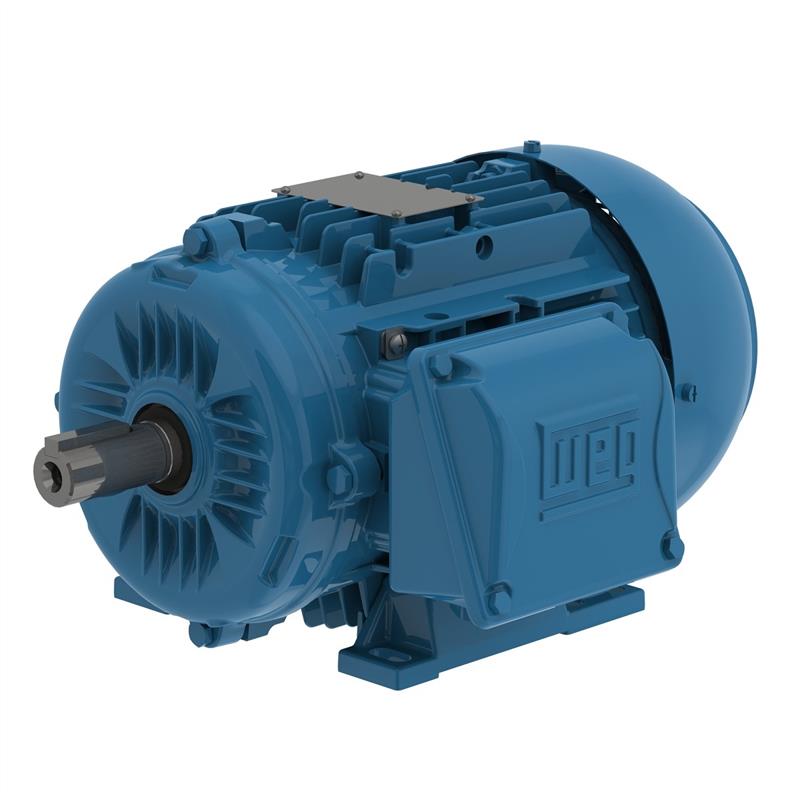

.2512EP3EAL71-W22 WEG Motor, IEC Tru-Metric Motor (0.33 HP, 71 FRAME, 460 V, THREE PHASE, TEFC , 1100 RPM)

.2512EP3EAL71-W22 WEG Motor, IEC Tru-Metric Motor (0.33 HP, 71 FRAME, 460 V, THREE PHASE, TEFC , 1100 RPM)

.2512EP3EAL71-W22

$282.17 USD
$282.17 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG Motor .2512EP3EAL71, 0.33 HP, RPM: 1100, FRAME: 71, 460 V, THREE PHASE: 60 Hz, : TEFC, IEC Tru-Metric Motor

Applications
Blowers, Compressors, Pumps, Conveyor, Textiles, Marine duty
Features
IEC Tru-Metric Motor, 3-Phase, Cast Iron or Aluminum, High Efficiency, TEFC

Tech Specs

Brand
WEG Motors
Model Number
.2512EP3EAL71
HP
0.33 HP
RPM
1100
FRAME
71
VOLTAGE
460 V
PHASE
THREE
FREQUENCY
60 Hz
ENCLOSURE
TEFC
APPROXIMATE WEIGHT (lb)
21
FEET
YES
TERMINAL BOX
RIGHT
FLANGE
-
RATED CURRENT
1.00 A
LOCKED ROTOR CURRENT IL IN
3.5
LOCKED ROTOR CURRENT
3.50 A
LOCKED ROTOR TORQUE
2.8
BREAKDOWN TORQUE
2.8
EFFICIENCY 50
53
EFFICIENCY 75
62
EFFICIENCY 100
64
POWER FACTOR 50
0.31
POWER FACTOR 75
0.41
POWER FACTOR 100
0.49
SERVICE FACTOR
1.15
INERTIA KGM2
0.00096 kgm
INERTIA SQ FT
0.02278 sq.ft.
LOCKED ROTOR TIME
11 s
NOISE LEVEL
47 dB(A)
ALTITUDE
1000
DUTY CYCLE
S1
AMBIENT TEMPERATURE
-20C - +40C
DEGREE OF PROTECTION
IP55
NO-LOAD CURRENT
0.850 A
INSULATION CLASS
F
FULL LOAD TORQUE NM
2.11 Nm
FULL LOAD TORQUE FT
1.55 .ft
SLIP
0.0833
DESIGN
N
TEMPERATURE RISE
80 K
BEARINGS D E
6203 ZZ
BEARINGS N D E
6202 ZZ
REGREASING INTERVAL D E
-
REGREASING INTERVAL N D E
-
GREASE AMOUNT D E
-
GREASE AMOUNT N D E
-
