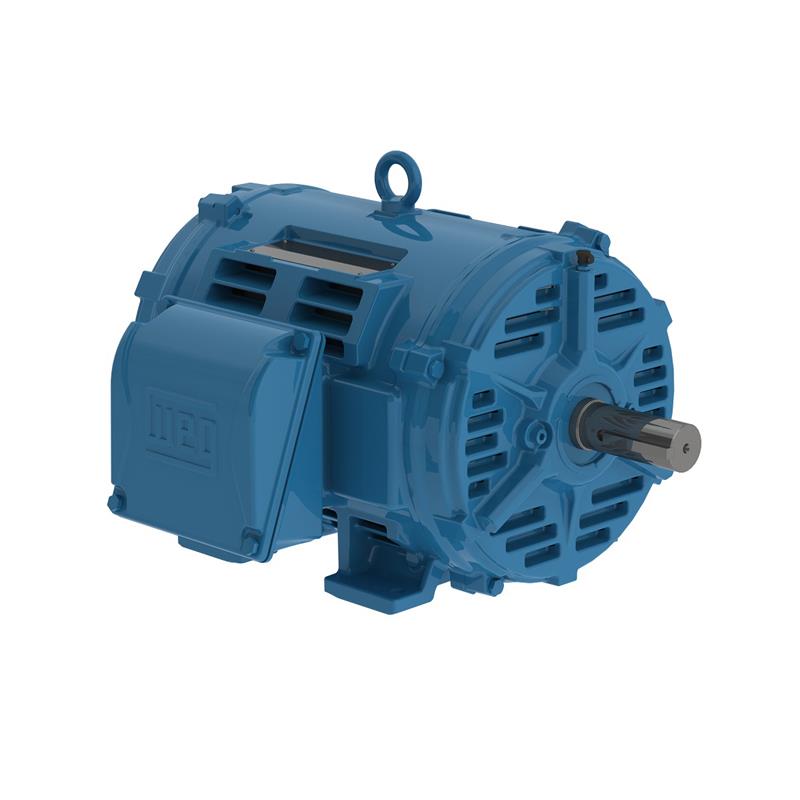

25018OT3G445T-W40 WEG Motor (250 HP, 445T FRAME, 460 V, THREE PHASE, ODP , 1780 RPM)
25018OT3G445T-W40 WEG Motor (250 HP, 445T FRAME, 460 V, THREE PHASE, ODP , 1780 RPM)
SKU:25018OT3G445T-W40
Precio habitual
$11,305.10 USD
Precio habitual
Precio de oferta
$11,305.10 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
No se pudo cargar la disponibilidad de retiro
WEG Motor 25018OT3G445T, 250 HP, RPM: 1780, FRAME: 445T, 460 V, THREE PHASE: 60 Hz, : ODP, WEG General Purpose Motor
| Applications |
| Pumps, fans, crushers, conveyors, machine tools, milling applications, centrifugal machines, presses, elevators, looms, grinders, woodworking, cooling, packaging equipment, other Severe Duty applications |
| Features |
| General Purpose Motor, 3-Phase, Rolled Steel or Cast Iron, NEMA Premium, ODP |
Tech Specs | |
Brand |
WEG Motors |
Model Number |
25018OT3G445T |
HP |
250 HP |
RPM |
1780 |
FRAME |
445T |
VOLTAGE |
460 V |
PHASE |
THREE |
FREQUENCY |
60 Hz |
ENCLOSURE |
ODP |
APPROXIMATE WEIGHT (lb) |
2029 |
FEET |
YES |
TERMINAL BOX |
LEFT |
FLANGE |
- |
RATED CURRENT |
275 A |
LOCKED ROTOR CURRENT IL IN |
7.4 |
LOCKED ROTOR CURRENT |
2040 A |
LOCKED ROTOR TORQUE |
2.4 |
BREAKDOWN TORQUE |
2.6 |
EFFICIENCY 50 |
95 |
EFFICIENCY 75 |
95.4 |
EFFICIENCY 100 |
95.8 |
POWER FACTOR 50 |
0.78 |
POWER FACTOR 75 |
0.86 |
POWER FACTOR 100 |
0.88 |
SERVICE FACTOR |
1.15 |
INERTIA KGM2 |
2.4089 kgm |
INERTIA SQ FT |
57.163 sq.ft. |
LOCKED ROTOR TIME |
14 s |
NOISE LEVEL |
78 dB(A) |
ALTITUDE |
1000 |
DUTY CYCLE |
S1 |
AMBIENT TEMPERATURE |
-20C - +40C |
DEGREE OF PROTECTION |
IP23 |
NO-LOAD CURRENT |
87.5 A |
INSULATION CLASS |
F |
FULL LOAD TORQUE NM |
987 Nm |
FULL LOAD TORQUE FT |
728 .ft |
SLIP |
0.0111 |
DESIGN |
B |
TEMPERATURE RISE |
80 K |
BEARINGS D E |
6319 C3 |
BEARINGS N D E |
6316 C3 |
REGREASING INTERVAL D E |
20000 h |
REGREASING INTERVAL N D E |
20000 h |
GREASE AMOUNT D E |
45 g |
GREASE AMOUNT N D E |
34 g |
