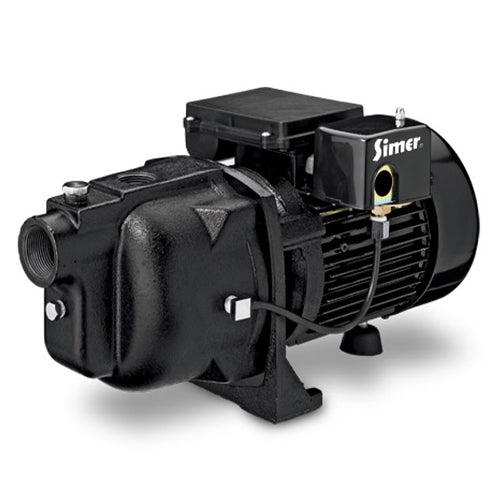

2207C Simer Shallow Well Jet Pumps (3/4 HP, 115/230 Voltage, 1-1/4" NPT Suction, 1" NPT Discharge)

Simer 2207C, Shallow Well Jet Pump Type, 3/4 HP, 115/230 Voltage, 1-1/4" NPT Suction, 1" NPT Discharge,

Applications
Great performance at depths to 25' (depth-to-water) in a tough cast iron pump.
Features
Reliable performance to depths of water 25' or less.
Rugged cast iron construction maximizes pump life.
Pre-wired pressure switch preset for 30/50 PSI operation.
Self priming after pump housing is initially filled. Check valve or foot valve required.

Specifications
Brand	Simer
Catalog Number	2207C
Type	Shallow Well Jet Pump
HP	3/4
Voltage	115/230
AMPS	11.0/5.5
Pressure Switch ON	30
Pressure Switch OFF	50
Body Construction	Cast Iron
Suction	1-1/4" NPT
Discharge	1" NPT

Support Documents (pdf)
