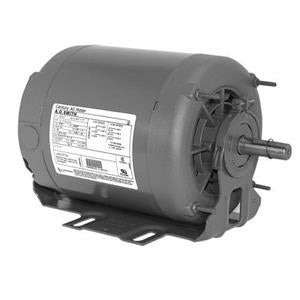

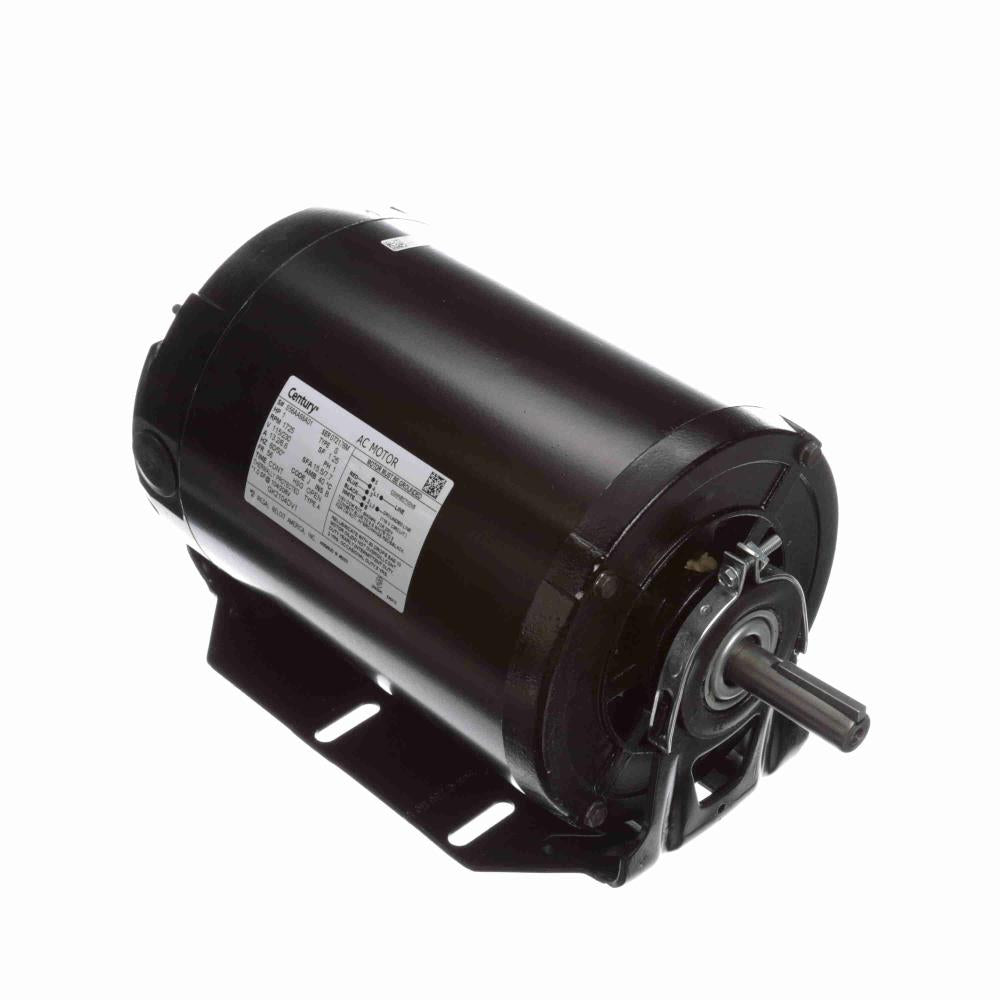

2104DV1 Century Belt Drive & Blower Motor (1 HP, 115/230 Volts, 56 Frame, 1725 RPM)
2104DV1 Century Belt Drive & Blower Motor (1 HP, 115/230 Volts, 56 Frame, 1725 RPM)
[COUNT] shoppers are looking at this right now
No reviews
SKU:2104DV1
Precio habitual
$0.00 USD
Precio habitual
Precio de oferta
$0.00 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
2104DV1 Century Belt Drive & Blower Motor (1 HP, 115/230 Volts, 56 Frame, 1725 RPM)
| Applications |
| Centrifugal Pumps, Blowers, Fans |
| Features |
| Class B Ins. (Class A see notes); Reversible; Continuous Duty; Single Speed; Energy Efficient $ (see notes); Sleeve & Ball Bearing; Open and Enclosed; 60 HZ |
Tech Specs. | |
Brand |
A.O. Smith |
Model Number |
2104DV1 |
HP |
1 |
RPM |
1725 |
Volts |
115/230 |
Full Load Amps |
15.6/7.8 |
Service Factor |
1.25 |
Bearings |
Sleeve |
Frame |
56 |
Apx. Wt. (lb) |
30 |
Enclosure |
Open |
Aprox "C" |
12.3 |
Dim "AG" |
10.3 |
Protector |
Auto |
Type |
Split Phase Resilient Base Motor |
Support Documents (pdf) | ||||
| Product Literature | ||||
