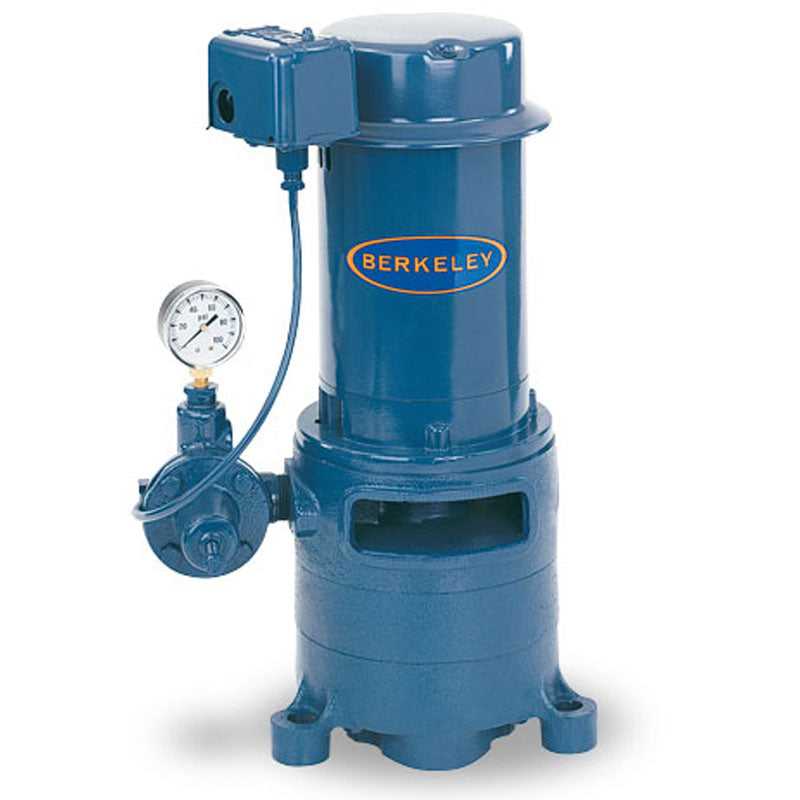

20MS Berkeley Vertical Multi-Stage Deep Well Jet Pumps (2 HP, 230 Voltage, 95 PSI, 60 Hz, Cast Iron Body, MS Series)

20MS Berkeley Vertical Multi-Stage Deep Well Jet Pumps (2 HP, 230 Voltage, 95 PSI, 60 Hz, Cast Iron Body, MS Series)

20MS

$1,660.31 USD
$1,660.31 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Berkeley 20MS, Vertical Multi-Stage Deep Well Jet Pumps Type, MS Series, 2 HP, 230 Voltage, 95 PSI, 60 Hz, Cast Iron Body,
Applications
The MS Series Vertical Jet Pumps are the industry standard deep well jet pumps for over-the-well "bolt-on" installations. These pumps include the pre-plumbed BERKELEY external automatic regulator, pressure gauge, pressure switch, and a complete line of casing adapters to drive the 4" double pipe or 2" and 3" single pipe jet packages. APPLICATIONS: Water systems and sprinklingfor homes, farms and cottages.
Features
Automatic Pressure Regulator With a Faster Acting and Quieter Design Eliminates "Hunting" For the Correct Drive Pressure. New Improved Stem and Guide are Precisely Molded to Assure Efficient, Trouble-Free Performance On All Deep Wells
Quality Built Precision Machined, Close Grained Cast Iron Body and Base Are Specially Treated to Resist Corrosion
Precision Molded Noryl Impellers for Perfect Balance. Ultra-Smooth for Highest Performance and Efficiency
High Quality Pressure Switch With Adjustable Differential and Cut-In/Cut-Out Pressure Settings
Superior Insulation Materials Protect Motor Against Excessive Moisture and Contaminants to Ensure Prolonged Motor Life
Mechanical Shaft Seal Has Precision Lapped and Highly Polished Carbon-Ceramic Surfaces. Internal Design Guarantees Continuous Water Lubrication For Maximum Protection
Dustproof Motor Cover Protects All Electrical Components From Dirt, Dust, and Insects. Ventilating Air Cannot Contaminate Vital Switching Components
Dynamically Balanced Rotor is Die Cast Under High Pressure For Uniform Performance and Greater Efficiency
Heavy-Duty Permanently Lubricated Ball Bearings Are Extensively Tested To Ensure Extended Life and Smooth, Quiet Operation
One-Piece Stainless Steel Threaded Pump and Motor Shaft for Positive Impeller Drive and Alignment.

Specifications

Brand
Berkeley
Catalog Number
20MS
Type
Vertical Multi-Stage Deep Well Jet Pumps
Series
MS
HP
2
Voltage
230
PSI
95
Discharge
1"
Suction
1-1/4"
Drive
1-1/4"
Hz
60
Body
Cast Iron
Pump and Motor Shaft
416 Stainless Steel
Impeller
Noryl (R)
Diffuser
Close-Grained Cast Iron
