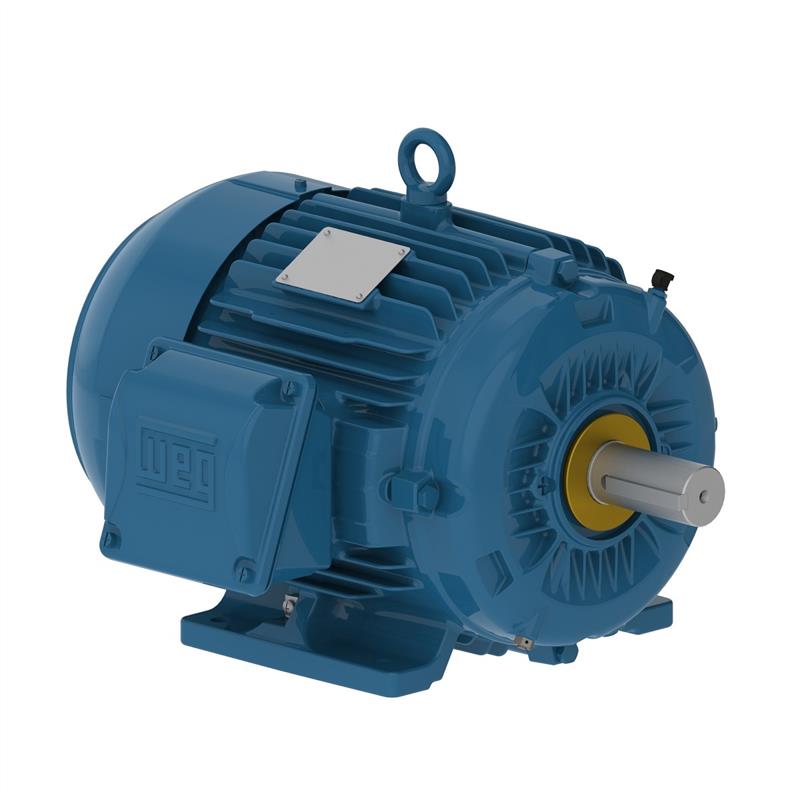

20009ST3QIERB449T-W2 WEG Motor (200 HP, 900 RPM, 3 Phase, L447/9T Frame, TEFC Enclosure, 460 Voltage)
20009ST3QIERB449T-W2 WEG Motor (200 HP, 900 RPM, 3 Phase, L447/9T Frame, TEFC Enclosure, 460 Voltage)
[COUNT] shoppers are looking at this right now
No reviews
SKU:20009ST3QIERB449T-W2
Precio habitual
$51,080.66 USD
Precio habitual
$57,394.00 USD
Precio de oferta
$51,080.66 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
WEG 20009ST3QIERB449T-W2, 200 HP, 150 KW, 900 RPM, 3 Phase, L447/9T Frame, TEFC Enclosure, 460 Voltage
| Applications | |
| WEG's IEEE841 motors are specially suited for Pulp & Paper mills, Steel mills, ical Plants and diverse demanding applications requiring severe duty long life motors. WEG's W22 cast iron platform has an improved cooling system and solid feet for cooler operation and reduced vibration and noise extending the life of the motor. | |
| Features | |
| Class F insulation (Impregnation Resin and magnet wire are class H) | |
| F1 Mounted (F2 convertible). Frames 447T and up can easily be F2 converted by simply rotating the terminal box adapter | |
| Stainless Steel Nameplate - Laser etched with high contrast background | |
| All frames with regreasable ball bearings | |
Specifications | |
Brand |
WEG |
Catalog Number |
20009ST3QIERB449T-W2 |
Type |
Motors |
HP |
200 |
KW |
150 |
RPM |
900 |
Phase |
3 |
C Dimension |
57.181 |
Service Factor |
1 |
Frame |
L447/9T |
Enclosure |
TEFC |
Full Load Amps |
242 |
Mount |
Foot Mount |
Voltage |
460 |
Warranty |
1 Year |
Support Documents (pdf) | ||||
