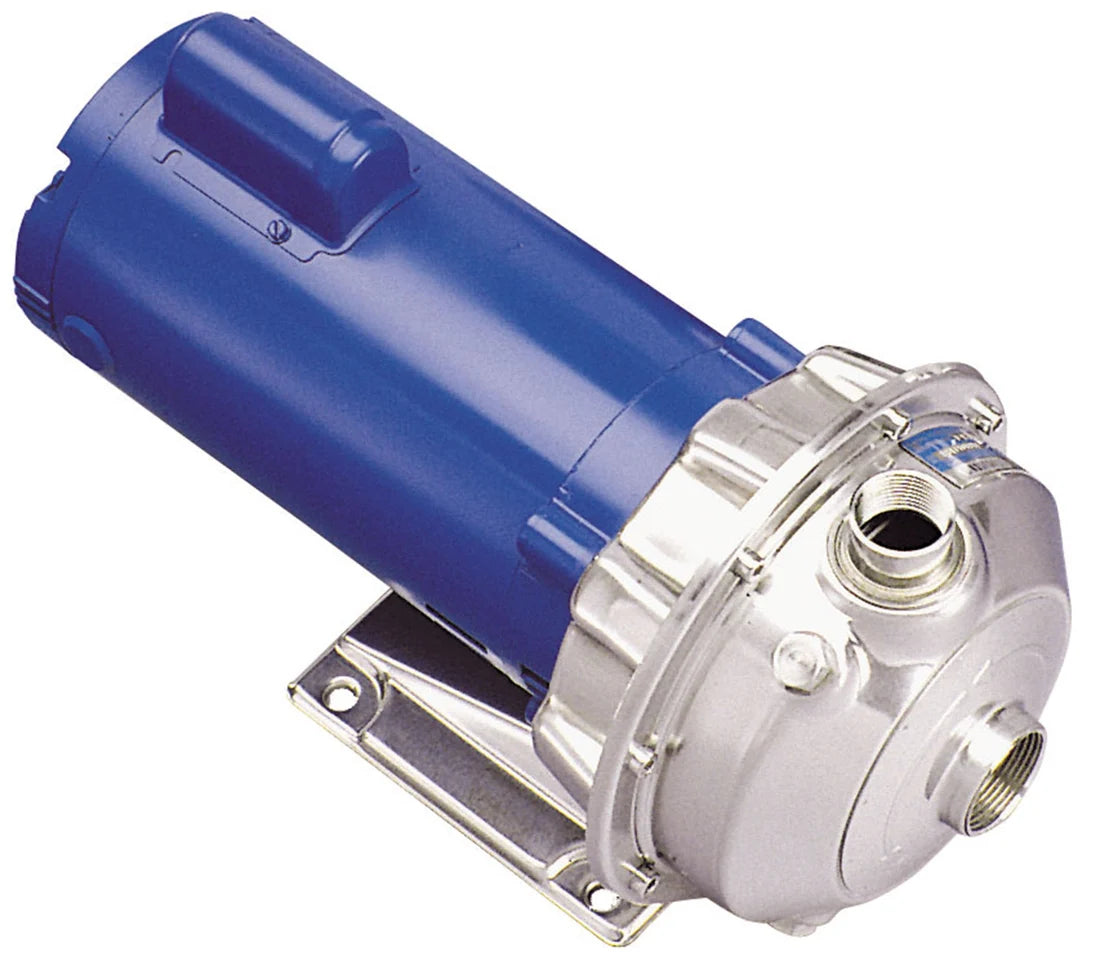

1ST2C5D4 Goulds NPE Series Stainless Steel Centrifugal Pump (1/2 HP, 208-230/460 Volt, 3 Phase, 1750 RPM, 1" NPT Discharge, 1-1/4" NPT Suction, 21.5 GPM, 23' Max Head, TEFC Enclosure)

1ST2C5D4 Goulds NPE Series Stainless Steel Centrifugal Pump (1/2 HP, 208-230/460 Volt, 3 Phase, 1750 RPM, 1" NPT Discharge, 1-1/4" NPT Suction, 21.5 GPM, 23' Max Head, TEFC Enclosure)

Features

• The close coupled compact, flexible design saves space, can be mounted horizontally or vertically, and simplifies maintenance
• Standard NEMA motors have stainless steel shaft and rugged ball bearing design for continuous duty under all conditions
• Superior, complete AISI 316L stainless steel liquid handling components and mounting bracket for corrosion resistance, quality appearance, and improved strength and durability
• Casing and adapter have NPT threaded centerline connections, easily accessible vent, prime and drain connections with stainless plugs
• Unique floating O-ring enclosed impeller design maintains maximum efficiencies
• High efficiency enclosed impeller with unique floating seal ring design maintains maximum efficiencies over the life of the pump without adjustment
• Casing and adapter features stainless steel construction with NPT threaded, centerline connections, easily accessible vent, prime and drain connections with stainless steel plugs. Optional seal face vent/flush available.
• Standard John Crane Type 21 with carbon versus silicon-carbide faces, Viton elastomers, and 316 stainless metal parts. Optional high temperature and chemical duty seals available.

• Water circulation
• Booster service
• Liquid transfer
• Spray system
• Chillers
• Washing/cleaning systems
• Injection molding cooling
• Reverse osmosis
• Air scrubbers
• Heat exchangers
• Filtration systems
• Jockey pumps
• OEM applications
• General water services
