Bell & Gossett

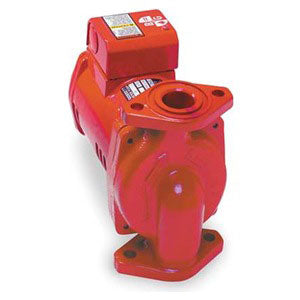

1BL068LF Bell & Gossett PL-55B Booster Pump, Permanently Lubricated (2/5HP, 1 Phase, 115 Volts, Bronze , 40 GPM @ 15')

1BL068LF Bell & Gossett PL-55B Booster Pump, Permanently Lubricated (2/5HP, 1 Phase, 115 Volts, Bronze , 40 GPM @ 15')

[COUNT] shoppers are looking at this right now

1BL068LF

$0.00 USD
$0.00 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Bell & Gossett 1BL068LF, PL-55B , PL Series , 2/5 HP, 1 Phase, 115 Volts, 150 Max PSI, 225 F Max Operating Temp., Bronze , 40 GPM @ 15', B&G Hot Water Circulator Pump
Applications
The Series PL close coupled booster pumps are specifically designed for quiet operation in hydronic, radiant and geothermal heating and cooling systems. These inline permanently lubricated pumps are available in cast iron or lead-free bronze body construction.
Features
B&Gs powerful, dry-motor design delivers exceptional performance
25% more efficient than competition
Precision-machined and balanced alloy steel rotor for superior performance.
Solid "Stiff-Shaft" design is constructed of high-strength alloy steel impervious to cracking caused by thermal stresses.
XL-11 Precision-Crafted Bearing System
Permanently oil lubricated
Completely maintenance free
Double sided stainless steel neck ring for optimum efficiency
Tough, durable seal system features a carbon/silicon carbide seal on a stainless steel shaft sleeve for long life and rugged operation
Advanced close-coupled design increases pump life and efficiency, assures dependable seasonal start-ups and can easily handle difficult water conditions

Tech Specs

Brand
Bell & Gossett
Model Number
1BL068LF
Model Number
PL-55B
Type
Circulator Pump, Close Coupled Dry Rotor
B&G Series
PL Series
HP
2/5
Phase
1
Volts
115
F.L. Amps
4.7
RPM
3250
Speeds
1
Max PSI
150
Max Operating Temp.
225 F
Pump Body
Bronze
GPM @ 5'
46
GPM @ 10'
44
GPM @ 15'
40
GPM @ 20'
35
GPM @ 25'
32
GPM @ 30'
26
GPM @ 35'
22
GPM @ 40'
16
Face Plate
Stainless Steel
Impeller
Glass Filled PPS
Shaft
Stainless Steel
Shaft Sleeve
None
Seal
Mechanical, Carbon on Silicon Carbide
Bearings
Permanently Lubricated
Motor Type
ODP
Elastomers
EPDM
CONNECTION
3/4, 1, 1-1/4, 1-1/2
Shipping Weight lbs.
14
Pump Curve and Notes
SEE PL Pump Literature

Support Documents (pdf)

PL Pump Literature
