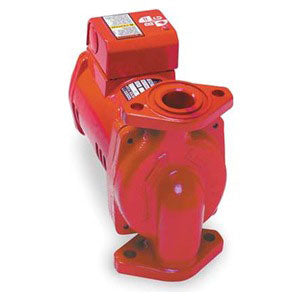

1BL034 Bell & Gossett PL-75 Booster Pump, Permanently Lubricated (1/6HP, 1 Phase, 115 Volts, Cast Iron , 10 GPM @ 15')
1BL034 Bell & Gossett PL-75 Booster Pump, Permanently Lubricated (1/6HP, 1 Phase, 115 Volts, Cast Iron , 10 GPM @ 15')
SKU:1BL034
Precio habitual
$0.00 USD
Precio habitual
Precio de oferta
$0.00 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
No se pudo cargar la disponibilidad de retiro
Bell & Gossett 1BL034, PL-75 , PL Series , 1/6 HP, 1 Phase, 115 Volts, 150 Max PSI, 225 F Max Operating Temp., Cast Iron , 10 GPM @ 15', B&G Hot Water Circulator Pump
| Applications | |
| The Series PL close coupled booster pumps are specifically designed for quiet operation in hydronic, radiant and geothermal heating and cooling systems. These inline permanently lubricated pumps are available in cast iron or lead-free bronze body construction. | |
| Features | |
| B&Gs powerful, dry-motor design delivers exceptional performance | |
| 25% more efficient than competition | |
| Precision-machined and balanced alloy steel rotor for superior performance. | |
| Solid "Stiff-Shaft" design is constructed of high-strength alloy steel impervious to cracking caused by thermal stresses. | |
| XL-11 Precision-Crafted Bearing System | |
| Permanently oil lubricated | |
| Completely maintenance free | |
| Double sided stainless steel neck ring for optimum efficiency | |
| Tough, durable seal system features a carbon/silicon carbide seal on a stainless steel shaft sleeve for long life and rugged operation | |
| Advanced close-coupled design increases pump life and efficiency, assures dependable seasonal start-ups and can easily handle difficult water conditions | |
Tech Specs | |
Brand |
Bell & Gossett |
Model Number |
1BL034 |
Model Number |
PL-75 |
Type |
Circulator Pump, Close Coupled Dry Rotor |
B&G Series |
PL Series |
HP |
1/6 |
Phase |
1 |
Volts |
115 |
F.L. Amps |
2.1 |
RPM |
3400 |
Speeds |
1 |
Max PSI |
150 |
Max Operating Temp. |
225 F |
Pump Body |
Cast Iron |
GPM @ 5' |
56 |
GPM @ 10' |
40 |
GPM @ 15' |
10 |
GPM @ 20' |
- |
GPM @ 25' |
- |
GPM @ 30' |
- |
GPM @ 35' |
- |
GPM @ 40' |
- |
Face Plate |
Stainless Steel |
Impeller |
30% Glass Filled Noryl |
Shaft |
Carbon Steel |
Shaft Sleeve |
Stainless Steel |
Seal |
Mechanical, Carbon on Silicon Carbide |
Bearings |
Permanently Lubricated |
Motor Type |
ODP |
Elastomers |
EPDM |
CONNECTION |
2 |
Shipping Weight lbs. |
19 |
Pump Curve and Notes |
SEE PL Pump Literature |
Support Documents (pdf) | ||||
| PL Pump Literature | ||||
