U.S. Motors

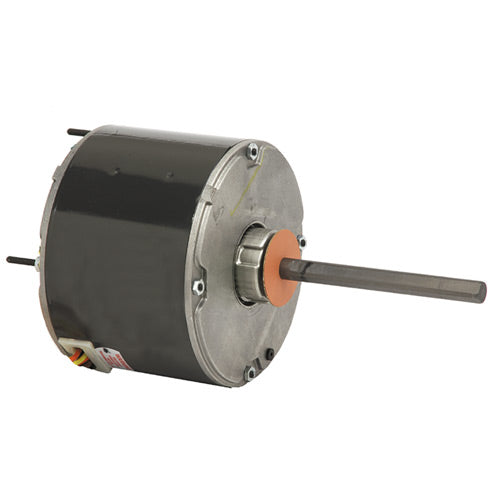

1878 U.S. Motors Permanent Split Capacitor Condenser Fan Motor (1/2 HP, 208-230 Volts, 1075 RPM)
1878 U.S. Motors Permanent Split Capacitor Condenser Fan Motor (1/2 HP, 208-230 Volts, 1075 RPM)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:1878
Precio habitual
$170.45 USD
Precio habitual
$0.00 USD
Precio de oferta
$170.45 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
US Motors Emerson 1878, HP: 1/2, RPM: 1075, Volts: 208-230, OEM Direct Replacement: -, Diameter: 5.6", Enclosure: TEAO,
| Applications | |
| Residential and commercial condensing unit fan motors to meet manufacturer's requirements. | |
| Features | |
| 140F (60C) Ambient Design | Hubless Lead End |
| Sleeve Bearings have All Angle Thrust System | Drain Holes Both Ends |
| Class B Insulation | Reversible Rotation |
| Designed for use with 370V Capacitors | Automatic Reset Thermal Overload Protector |
| Extended Studs | Continuous Duty |
| 30" Leads | |
Tech Specs | |
Brand |
U.S. Motors/Emerson |
Model Number |
1878 |
HP |
1/2 |
RPM |
1075 |
Volts |
208-230 |
Bearings |
Ball |
Amps |
3 |
Cap. MFD |
10 |
Shaft N |
6 |
Apx. Wt. (lb) |
18 |
Shell XI |
5.3 |
Total C |
11.9 |
OEM Direct Replacement |
- |
Diameter |
5.6" |
Enclosure |
TEAO |
Type |
Permanent Split Capacitor Condenser Fan Motor |
Support Documents (pdf) | ||||
| Product Literature | ||||
