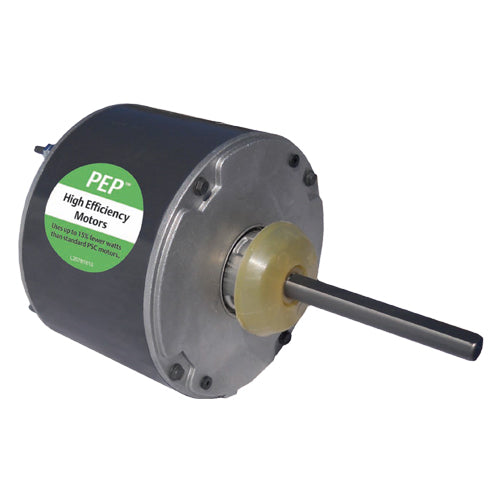

1862PEP US Motor (0.5 HP - TEAO - 1130 RPM)
1862PEP US Motor (0.5 HP - TEAO - 1130 RPM)
No reviews
SKU:1862PEP
Precio habitual
$156.39 USD
Precio habitual
Precio de oferta
$156.39 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
No se pudo cargar la disponibilidad de retiro
1862PEP US Motor (0.5 HP - TEAO - 1130 RPM)
| Model_Number: | K055WRJ0123012B |
| PRODUCT NAME: | .5 HP - TEAO - 1130 |
| PHASETYPE: | 1_PERMANENT SPLIT CA |
| MOTOR ENCLOSURE: | TEAO |
| HORSEPOWER: | .5 |
| KILOWATTS: | 0.4 |
| POLES: | 6 |
| NUMBER SPEEDS: | 1 |
| RPM: | 1130 |
| HERTZ: | 60 |
| HERTZ 2: | 50 |
| VOLTS PRIMARY: | 208-230 V |
| VOLTS : | 208 |
| VOLTS 2: | 230 |
| FRME : | 48 |
| SHAFT CODE: | Y |
| STATOR DIAMETER: | 5.5 |
| STACK: | 2.5 |
| MOUNTING: | STUD/BAND |
| MOTOR TYPE: | FHP |
| OPPOSITE END BEARING: | 6201 |
| SHAFT END BEARING: | 6201 |
| AMBIENT: | 70 |
| ROTATION: | CCW LEAD END REV |
| SERVICE FACTOR: | 1 |
| RUNCAPMFD: | 10 |
| RUNCAPVOLTS: | 370 |
| SHIPPING WEIGHT: | 18 |
| THERMAL PROTECTION: | AUTOMATIC RESET |
| BREAKDOWN TORQUE: | 69.08 |
| BREAKDOWN TORQUE UOM: | OZFT |
| LOCKED ROTOR TORQUE: | 13.33 |
| LOCKED ROTOR TORQUE UOM: | OZFT |
| INSULATION CLASS: | F |
| LOCKED ROTOR AMPS: | 7.5 |
| FULL LOAD AMPS PRIMARY: | 2.5 |
