U.S. Motors

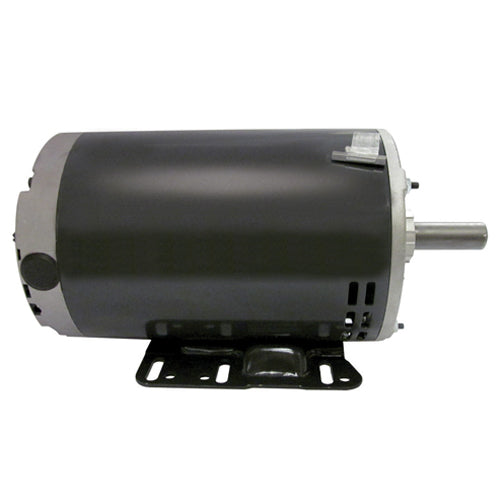

1815P US Motors Belted Fan & Blower Motor 2HP, ODP, 1725 RPM, 208-230/460 V
1815P US Motors Belted Fan & Blower Motor 2HP, ODP, 1725 RPM, 208-230/460 V
[COUNT] shoppers are looking at this right now
No reviews
SKU:1815P
Precio habitual
$724.56 USD
Precio habitual
$0.00 USD
Precio de oferta
$724.56 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
No se pudo cargar la disponibilidad de retiro
1815P US Motors Belted Fan & Blower Motor 2HP, ODP, 1725 RPM, 208-230/460 V
| Model_Number: | P063SAD1325015B |
| Cat # | 1815P |
| PRODUCT NAME: | 2 HP - ODP - 1725 |
| PHASETYPE: | 3_POLYPHASE |
| MOTOR ENCLOSURE: | ODP |
| HORSEPOWER: | 2 |
| KILOWATTS: | 1.5 |
| POLES: | 4 |
| NUMBER SPEEDS: | 1 |
| RPM: | 1725 |
| RPM 2: | 1425 |
| HERTZ: | 60 |
| HERTZ 2: | 50 |
| VOLTS PRIMARY: | 208-230/460 V |
| VOLTS : | 208 |
| VOLTS 2: | 230 |
| VOLTS 3: | 460 |
| FRME : | 56 |
| SHAFT CODE: | H |
| STATOR DIAMETER: | 6.3 |
| STACK: | 3 |
| MOUNTING: | RIGID |
| MOTOR TYPE: | FHP |
| OPPOSITE END BEARING: | BALL |
| SHAFT END BEARING: | BALL |
| AMBIENT: | 40 |
| ROTATION: | CCW DRIVE END REV |
| SERVICE FACTOR: | 1.15 |
| SHIPPING WEIGHT: | 34 |
| THERMAL PROTECTION: | AUTOMATIC RESET |
| BREAKDOWN TORQUE: | 464.2 |
| BREAKDOWN TORQUE UOM: | OZFT |
| LOCKED ROTOR TORQUE: | 313.4 |
| LOCKED ROTOR TORQUE UOM: | OZFT |
| INSULATION CLASS: | B |
| KVA CODE LETTER: | M |
| LOCKED ROTOR AMPS: | 44.66 |
| NEMA NOMINAL EFFICIENCY: | 86.5 |
| FULL LOAD AMPS PRIMARY: | 6.0-6.2/3.1//6.8/3.4-3.3 |
| SERVICE FACTOR AMPS PRIMARY: | 6.7-6.6/3.3 |
