U.S. Motors

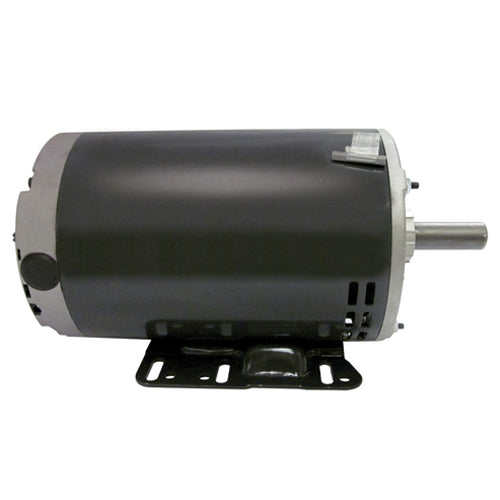

1813P US Motors Commercial Belted Fan & Blower Motor (1813P, 1 HP, ODP, 1725 RPM, 3 Phase)

1813P US Motors Commercial Belted Fan & Blower Motor (1813P, 1 HP, ODP, 1725 RPM, 3 Phase)

👁️ [COUNT] People are currently viewing this product.

1813P

$627.76 USD
$0.00 USD $627.76 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

1813P US Motors 1813P - 1 HP - ODP - 1725 RPM

PRODUCT NAME
1 HP - ODP - 1725
PHASETYPE
3_Phase
MOTOR ENCLOSURE
ODP
HORSEPOWER
1
KILOWATTS
0.8
POLES
4
NUMBER SPEEDS
1
RPM
1725
RPM 2
1425
HERTZ
60
HERTZ 2
50
VOLTS PRIMARY
230/460 V
VOLTS
230
VOLTS 2
460
VOLTS 3
460
FRME
56
SHAFT CODE
H
STATOR DIAMETER
6.3
STACK
2.5
MOUNTING
RIGID BASE
MOTOR TYPE
FHP
OPPOSITE END BEARING
6203
SHAFT END BEARING
6203
AMBIENT
40
ROTATION
REVERSIBLE
SERVICE FACTOR
1.15
SHIPPING WEIGHT
30
THERMAL PROTECTION
AUTOMATIC RESET
BREAKDOWN TORQUE
198.4
BREAKDOWN TORQUE UOM
OZFT
LOCKED ROTOR TORQUE
136.1
LOCKED ROTOR TORQUE UOM
OZFT
INSULATION CLASS
B
KVA CODE LETTER
N
LOCKED ROTOR AMPS
19.18
NEMA NOMINAL EFFICIENCY
83.5
FULL LOAD AMPS PRIMARY
3.1-3.0/1.5&3.3/1.7-1.6
SERVICE FACTOR AMPS PRIMARY
3.3/1.6
