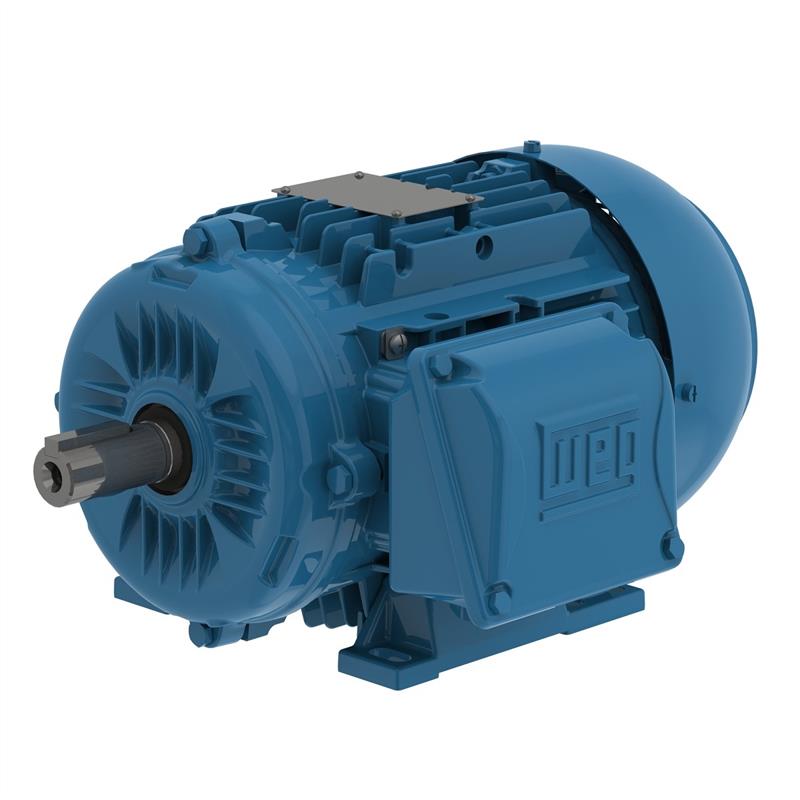

.1812EP3EAL71-W22 WEG Motor, IEC Tru-Metric Motor (0.25 HP, 71 FRAME, 460 V, THREE PHASE, TEFC , 1100 RPM)

WEG Motor .1812EP3EAL71, 0.25 HP, RPM: 1100, FRAME: 71, 460 V, THREE PHASE: 60 Hz, : TEFC, IEC Tru-Metric Motor

Applications

Blowers, Compressors, Pumps, Conveyor, Textiles, Marine duty

Features

IEC Tru-Metric Motor, 3-Phase, Cast Iron or Aluminum, High Efficiency, TEFC

Tech Specs
Brand	WEG Motors
Model Number	.1812EP3EAL71
HP	0.25 HP
RPM	1100
FRAME	71
VOLTAGE	460 V
PHASE	THREE
FREQUENCY	60 Hz
ENCLOSURE	TEFC
APPROXIMATE WEIGHT (lb)	19
FEET	YES
TERMINAL BOX	RIGHT
FLANGE	-
RATED CURRENT	0.772 A
LOCKED ROTOR CURRENT IL IN	3.5
LOCKED ROTOR CURRENT	2.70 A
LOCKED ROTOR TORQUE	2.8
BREAKDOWN TORQUE	2.8
EFFICIENCY 50	49
EFFICIENCY 75	57
EFFICIENCY 100	61
POWER FACTOR 50	0.31
POWER FACTOR 75	0.4
POWER FACTOR 100	0.48
SERVICE FACTOR	1.15
INERTIA KGM2	0.00079 kgm
INERTIA SQ FT	0.01875 sq.ft.
LOCKED ROTOR TIME	15 s
NOISE LEVEL	47 dB(A)
ALTITUDE	1000
DUTY CYCLE	S1
AMBIENT TEMPERATURE	-20C - +40C
DEGREE OF PROTECTION	IP55
NO-LOAD CURRENT	0.700 A
INSULATION CLASS	F
FULL LOAD TORQUE NM	1.60 Nm
FULL LOAD TORQUE FT	1.18 .ft
SLIP	0.0833
DESIGN	N
TEMPERATURE RISE	80 K
BEARINGS D E	6203 ZZ
BEARINGS N D E	6202 ZZ
REGREASING INTERVAL D E	-
REGREASING INTERVAL N D E	-
GREASE AMOUNT D E	-
GREASE AMOUNT N D E	-
