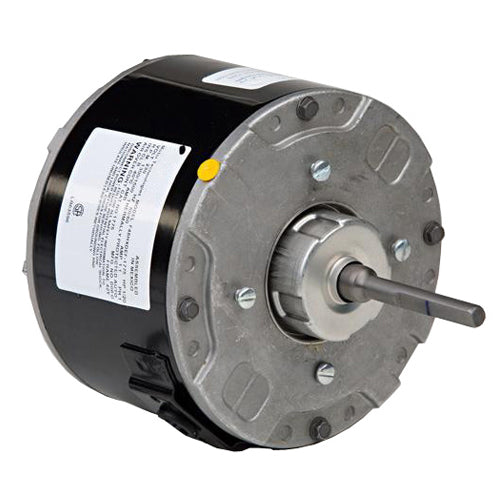

1775P U.S. Motors/Emerson Refrigeration Condenser Fan Motor (1/20HP, 1300/1500 RPM, Single Phase)
1775P U.S. Motors/Emerson Refrigeration Condenser Fan Motor (1/20HP, 1300/1500 RPM, Single Phase)
SKU:1775P
Precio habitual
$143.34 USD
Precio habitual
Precio de oferta
$143.34 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
No se pudo cargar la disponibilidad de retiro
1775P U.S. Motors/Emerson Refrigeration Condenser Fan Motor (1/20HP, 1300/1500 RPM, Single Phase)
| Model_Number: | K048GER4280013B |
| Catalog # | 1775P |
| PRODUCT NAME: | .05 HP - OAO - 1300 |
| PHASETYPE: | 1_PERMANENT SPLIT CA |
| MOTOR ENCLOSURE: | OAO |
| HORSEPOWER: | .05 |
| POLES: | 4 |
| NUMBER SPEEDS: | 1 |
| RPM: | 1300 |
| RPM 2: | 1500 |
| HERTZ: | 50 |
| HERTZ 2: | 60 |
| VOLTS PRIMARY: | 230 V |
| VOLTS : | 230 |
| FRME : | 42 |
| SHAFT CODE: | Y |
| STATOR DIAMETER: | 4.8 |
| STACK: | 0.75 |
| MOTOR TYPE: | FHP |
| OPPOSITE END BEARING: | SELF-ALIGN |
| SHAFT END BEARING: | SELF-ALIGN |
| AMBIENT: | 40 |
| ROTATION: | CCW LEAD END |
| RUNCAPMFD: | 3 |
| RUNCAPVOLTS: | 370 |
| SHIPPING WEIGHT: | 8 |
| THERMAL PROTECTION: | AUTOMATIC RESET |
| BREAKDOWN TORQUE: | 6.532 |
| BREAKDOWN TORQUE UOM: | OZFT |
| LOCKED ROTOR TORQUE: | 3.778 |
| LOCKED ROTOR TORQUE UOM: | OZFT |
| INSULATION CLASS: | B |
| LOCKED ROTOR AMPS: | 0.94 |
| FULL LOAD AMPS PRIMARY: | 0.5 |
