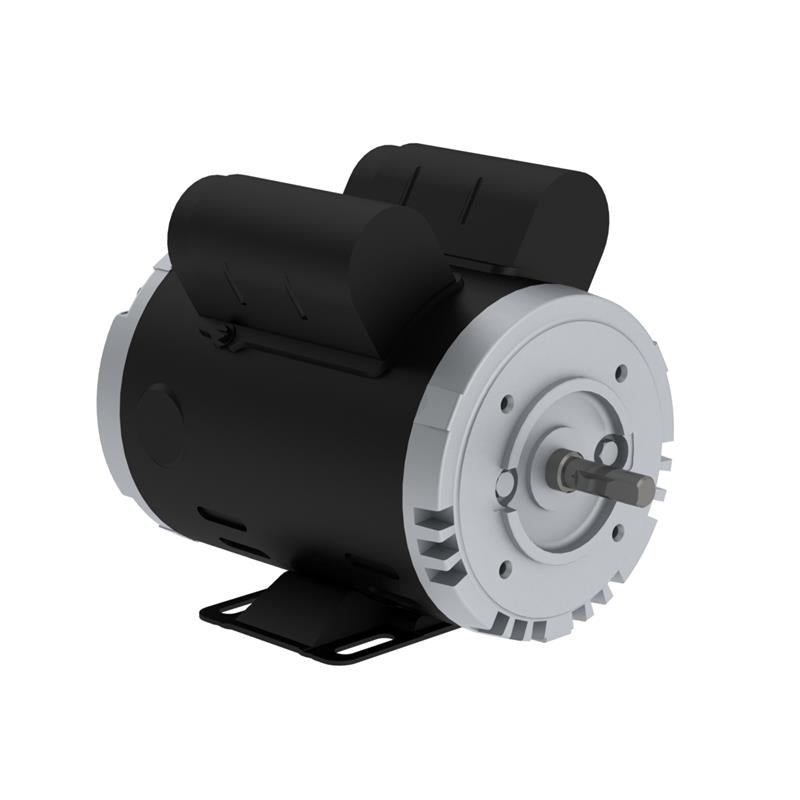

.1636OS1B48CH-S WEG C-Face Motor (.16 HP, 3600 RPM, 1 Phase, 60 Hz, 48CH Frame, ODP, 115/208-230 V)

.1636OS1B48CH-S WEG C-Face Motor (.16 HP, 3600 RPM, 1 Phase, 60 Hz, 48CH Frame, ODP, 115/208-230 V)

.1636OS1B48CH-S

$172.71 USD
$172.71 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

WEG .1636OS1B48CH-S, .16 HP, 3600 RPM, 1 Phase, 60 Hz, 48CH Frame, Foot-mounted, ODP, 115/208-230 V

Applications
High Starting Torque makes these motors ideal for a wide range of applications.
Features
High Starting Torque
182T frames and up are cast iron for severe duty
NPT Threaded Holes in Terminal Box
Class F insulation
V-ring Seals
Class F insulation

Specifications

Brand
WEG
Catalog Number
.1636OS1B48CH-S
Type
General Purpose Motor
Series
C-Face Motor
HP
.16
RPM
3600
Phase
1
Hertz
60
Frame
48CH
Mounting
Foot-mounted
Enclosure
ODP
Voltage
115/208-230
Full Load Amps
1.4
Full Load Efficiency
53
Frame Material
Rolled Steel
Service Factor
1.35
"C" Dimensions
9.098
Warranty
1 Year
