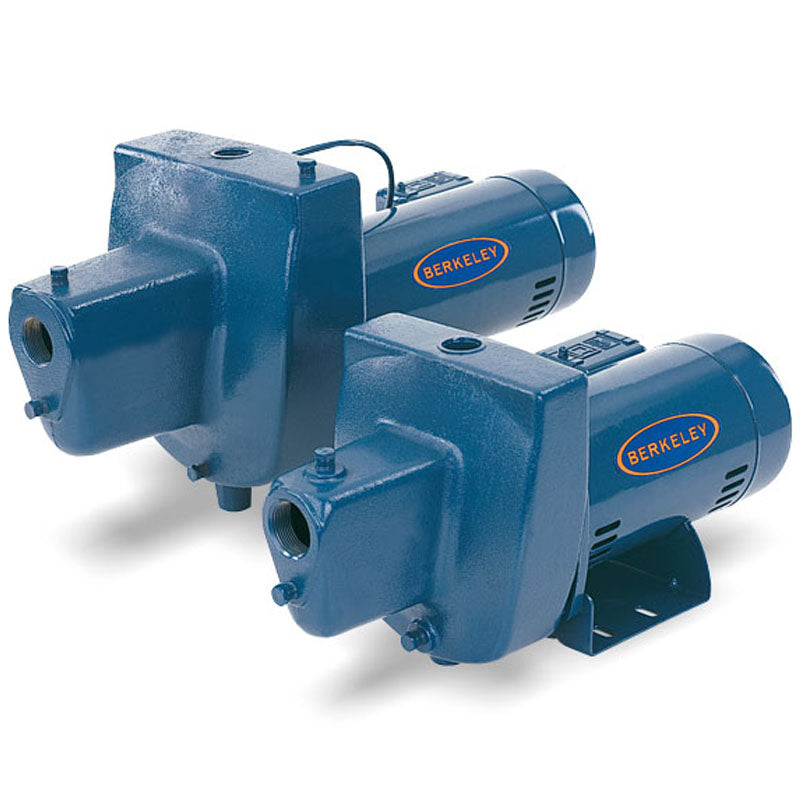

15SN Berkeley ProJet Shallow Well Jet Pump (1-1/2 HP, 1-1/4" Suction, 1" Discharge, 115/230 Voltage, cast iron Body)

15SN Berkeley ProJet Shallow Well Jet Pump (1-1/2 HP, 1-1/4" Suction, 1" Discharge, 115/230 Voltage, cast iron Body)

15SN

$861.82 USD
$861.82 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Berkeley 15SN, ProJet Shallow Well Jet Pumps Type, SN Series, 1-1/2 HP, 1-1/4" Suction, 1" Discharge, 115/230 Voltage, Close-grained cast iron Body,
Applications
The ProJet SN Series Pumps provide excellent performance with good pressure for wells to 25' deep. Selfpriming after the priming chamber has been filled with water. APPLICATIONS Water systems and sprinkling for homes, farms and cottages.
Features
Quality Construction: Close-grained cast iron body. Drain port provided for easy winterizing.
Built-in Jet: High-strength Lexan nozzle and venturi for maximum resistance to corrosion and abrasion. Cleanout plug provided for ease of service.
Noryl Impeller: Precision-molded for perfect balanceultra-smooth for highest performance and efficiency.
Precision-Molded Diffuser: Pump primes faster, handles more air, with multi-port, precision-molded, reinforced polypropylene diffuser.
Mechanical Shaft Seal: Precision lapped and highly polished carbon-ceramic, stainless steel construction. Internal design guarantees continuous water lubrication.
Motor Windings: Superior insulation materials protect against excessive moisture and contaminantsassure prolonged motor life.
Balanced Rotor: Diecast under high pressures for uniform performance and greater efficiency, dynamically balanced.
Heavy-Duty Ball Bearings: Shielded, permanently lubricated bearings, extensively tested to ensure extended life and smooth, quiet operation.
Pump and Motor Shaft: Stainless steel for maximum corrosion resistance; one-piece threaded shaft for positive impeller drive and alignment.
Dustproof Cover: All electrical components are protected from dirt, dust and insects by a dustproof canopy; ventilating air cannot contaminate vital switching components.
Pressure Switch: Professional quality, allows cut-in adjustments.

Specifications

Brand
Berkeley
Catalog Number
15SN
Type
ProJet Shallow Well Jet Pumps
Series
SN
HP
1-1/2
Switch Setting
30-50
Suction
1-1/4"
Discharge
1"
Voltage
115/230
Max. Inlet Pressure
50 PSI
Body
Close-grained cast iron
Shaft
One-piece threaded, 416 grade stainless steel
Diffuser
Reinforced polypropylene
Impeller
Noryl
Venturi
Lexan
Base
Steel, 12 gauge
