Berkeley Pumps

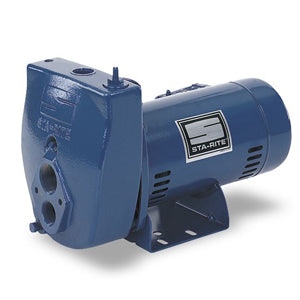

15SL Berkeley Convertible Jet Pump (1-1/2 HP, 1-1/4" Suction, 1" Drive, 1" Discharge, 115/230 Voltage, 50 PSI Max)

Name: 15SL Berkeley Convertible Jet Pump (1-1/2 HP, 1-1/4" Suction, 1" Drive, 1" Discharge, 115/230 Voltage, 50 PSI Max)
Brand: Berkeley Pumps
SKU: 15SL
Price: 907.62 USD
Availability: InStock

SKU:15SL

$907.62 USD

Oferta Agotado

Los gastos de envío se calculan en la pantalla de pago.

Cantidad

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Berkeley 15SL, Cast iron, self-priming convertible jet pump Type, SL/SLJ Series, 1-1/4" Suction, 1" Drive, 1" Discharge, 115/230 Voltage, 50 PSI Max. Inlet Pressure,

Applications
The ProJet SL convertible jet pumps offer a proven cast iron self-priming design available in 1/2 to 1-1/2 HP models. The ProJet SL convertible jets utilize the built-in regulators, offering easier priming and better range of performance from a complete line of shallow well, 4" double pipe, 2" and 3" single pipe jet packages. APPLICATIONS: Water systems and sprinkling for homes, farms and cottages.

Features
Quality Construction: Close-grained cast iron pump body is rugged one-piece unit, specially treated to resist corrosion. Drain port provided for easy winterizing.
Noryl Impeller: Precision-molded for perfect balanceultra-smooth for highest performance and efficiency.
Precision-Molded Diffuser: Pump primes faster, handles more air, with multi-port, precision-molded, reinforced polypropylene diffuser.
Pressure Switch: High-quality, cut-in pressure setting is adjustable. Fixed 20 PSI differential.
Mechanical Shaft Seal: Precision-lapped and highly polished carbon-ceramic, stainless steel construction. Internal design guarantees continuous water lubrication for maximum protection.
Motor Windings: Superior insulation materials protect against excessive moisture and contaminantsassures prolonged motor life.
Balanced Rotor: Diecast under high pressures for uniform performance and greater efficiencydynamically balanced.
Heavy-Duty Ball Bearings: Shielded, permanently lubricated bearings, extensively tested to ensure extended life and smooth, quiet operation.
Pump and Motor Shaft: 416 stainless steel for maximum corrosion resistance; one-piece threaded shaft for positive impeller drive and alignment.
Dustproof Cover: Dustproof canopy protects all electrical components from dirt, dust and insects; ventilating air cannot contaminate vital switching components eliminates the most common cause of motor failure.
* SLJ Models include ejector package.

Specifications
Brand	Berkeley
Catalog Number	15SL
Type	Cast iron, self-priming convertible jet pump
Series	SL/SLJ
HP	1-1/2
Suction	1-1/4"
Drive	1"
Discharge	1"
Voltage	115/230
Body and Seal Plate	Close-grained cast iron
Impeller	High-strength Noryl
Diffuser	Reinforced polypropylene with brass wear ring
Shaft	One-piece threaded 416 stainless steel
Base	Steel, 12 gauge
Max. Inlet Pressure	50 PSI
Pressure Switch Pre-Set	30-50 PSI
Suction Ports	Suction-over-Drive
