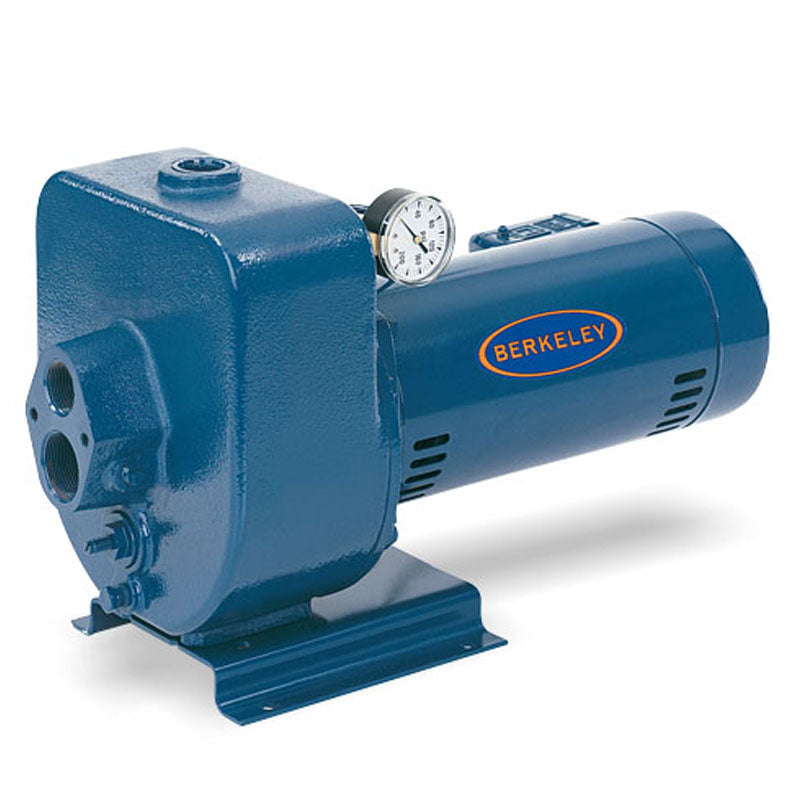

15LT2 Berkeley Horizontal Multi-Stage Jet Pump (1-1/2 HP, 1-1/4" Suction, 1" Drive, 1" Discharge, 115/230 Voltage, LT2 Series)

Berkeley 15LT2, Cast iron, horizontal multi-stage Pump Type, LT2 Series, 1-1/2 HP, 1-1/4" Suction, 1" Drive, 1" Discharge, 115/230 Voltage,

Applications
LT2 Series Multi-Stage Jet Pumps are the highest performing pumps available in its category. The LT2 Series Convertible Jets utilize the built-in regulator, offering easier priming and better range of performance from a complete line of Shallow Well, 4" Double Pipe, 2" and 3" Single Pipe Jet Packages. Pump may also be operated as a self-priming centrifugal (to 25 ft.) to provide a wide range of high pressure applications. APPLICATIONS Water systems and sprinkling for homes, farms and cottages.
Features
Automatic Pressure Regulator: Fasteracting and quieter, design eliminates hunting for correct drive pressure. New improved stem and guide are precisely molded to assure efficient, trouble-free performance on all deep wells. See ordering information (deep well only).
Quality Construction: Close-grained cast iron pump body is rugged, one-piece unit, specially treated to resist corrosion. Drain port provided for easy winterizing.
Precision-Machined Diffusers: Assure faster priming.
Mechanical Shaft Seal: Precision-lapped and highly polished carbon-ceramic, stainless steel construction. Internal design guarantees continuous water lubrication for maximum protection.
Polycarbonate Impellers: Precisionmolded for perfect balance, and ultrasmooth for highest performance and efficiency.
Motor Windings: Superior insulation materials protect against excessive moisture and contaminants to ensure prolonged motor life.
Dustproof Cover: All electrical components are protected from dirt, dust and insects by a dustproof canopy. Ventilating air cannot contaminate vital switching components. This eliminates the most common cause of motor failure.
Balanced Rotor: Diecast under high pressures for uniform performance and greater efficiency...dynamically balanced.
Heavy-Duty Ball Bearings: Shielded, permanently lubricated bearings are extensively tested to ensure extended life and smooth, quiet operation.
Pump and Motor Shaft: Stainless steel for maximum corrosion resistance;. one-piece threaded shaft for positive impeller drive and alignment.

Specifications
Brand	Berkeley
Catalog Number	15LT2
Type	Cast iron, horizontal multi-stage Pump
Series	LT2
HP	1-1/2
Suction	1-1/4"
Drive	1"
Discharge	1"
Voltage	115/230
Body	One-piece rugged cast iron
Pump and Motor Shaft	416 stainless steel
Impeller	Polycarbonate
Diffuser	Corrosion-resistant cast iron
Pressure Switch Pre-Set	3050 PSI
Suction Ports	Drive-over-Suction
Regulator, tubing, pipe plug and compression fitting	PKG 107
